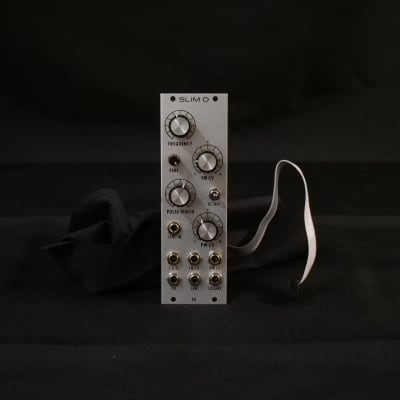

Discrete DC-Coupled Analog Oscillator

Identical OSCILLATION sound engine—the historic (32 years into this), gorgeously stable, and rich SE oscillator, slimmed down to 8hp essentials, with no tonal or quality sacrifice allowed; the Slimo is MidiMini big sonically. Compromise perfected. Three position octave switch is a bonus.

6 Pots
FREQUENCY, FINE, FM CV, PULSE WIDTH, PW CV.

1 Switch
OCTAVE - Three position range switch: +1/-1 octave switch.

7 Patch Points
1 V/O, FM CV, PW CV, TRI, SAW, SQUARE.

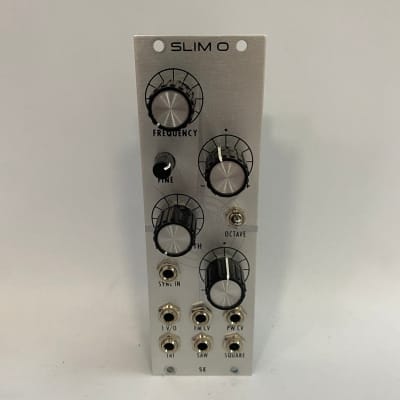

All Controls and Patch Points
FREQUENCY – Oscillator frequency attenuator.
FINE – Oscillator fine-tune trim.
FM CV – Frequency Modulation control voltage attenuverter.
OCTAVE – +1/-1 octave switch.
PULSE WIDTH – Pulse Width attenuator.
SYNC IN – Oscillator sync control voltage input.
PW CV – Pulse Width control voltage attenuverter.
1 V/O – One volt per octave control voltage input.
FM CV – Frequency Modulation control voltage input.
PW CV – Pulse Width control voltage input.
TRI – Triangle wave output.
SAW – Sawtooth wave output.
SQUARE – Square wave output.

http://studioelectronics.com/products/synths/boomstar-modular/slim-o

  • 20 mA +12V
  • 39 mA -12V
  • ? mA 5V
  • 40 mm deep

This Module is currently available.

$209 Price in €
8 HP Oscillator
