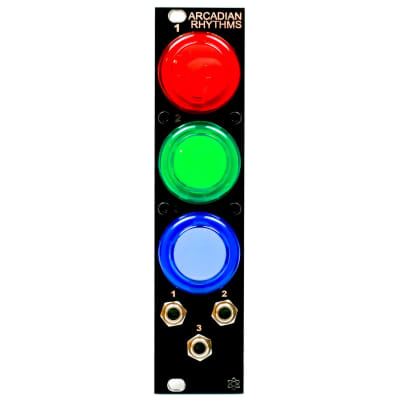

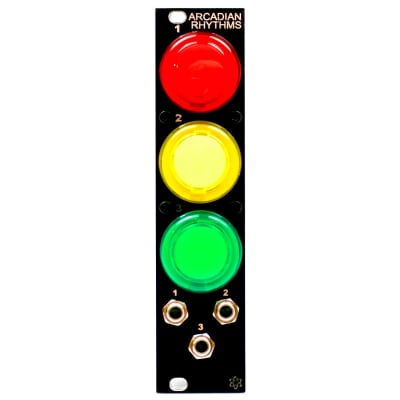

Arcadian Rhythms

Arcade button style manual gate

Arcadian Rhythms is an arcade button module that can be used to trigger drums, envelopes and other events in a Eurorack system. When the buttons are pressed, they light up and send a gate. As long as a button is held down, the gate remains high.

Mix and match your LED buttons! The brightness between colors will vary slightly, but the trimmers on the back of the module will adjust the LED brightness so the three buttons match. Reducing the brightness will also reduce the current draw (each button draws 41mA at full brightness).

https://www.synthrotek.com/products/modular-circuits/arcadian-rhythms/

  • 123 mA +12V
  • 0 mA -12V
  • 0 mA 5V
  • 35 mm deep
  • Ø 2.33 (3 Votes) Average Rating

Available as an assembled Module and as a DIY project.

This Module is currently available.

$55 Price in € submitted Oct 16th, 23:10 by synthrotek | last Change Oct 21st, 19:06 by synthrotek
Specs are approved by the manufacturer
