Dimensions
2 HP
14 mm deep
Current Draw
Module does not draw current
Price
$16 Price in €

This Module is currently available.

Specs are approved by the manufacturer

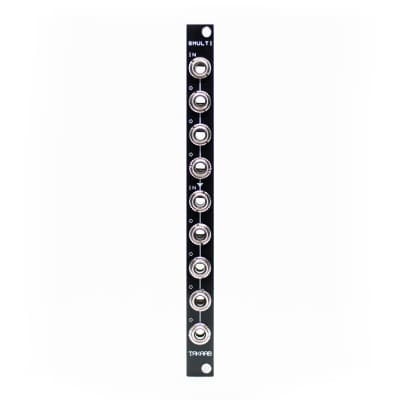

Switched Passive Multiple

Part of the Takaab range of modules by Siam Modular.

This passive module works as a 1 in 7 out multiple or as two smaller multiples. Any signal or voltage put into the top input will be split between the 7 outputs of the module. When a signal or voltage is added into the lower input, this creates two separate multiples - So the top input is then split between the top three outputs, and the lower input is split between the bottom 4 outputs.

As this is a passive module, expect some drop in level. However, it is still useful for most applications where a 1v/oct signal does not need to be maintained.

1x "1 in 7 out" multi -OR- 1x "1 in 3 out" multi + 1x "1 in 4 out" multi.

Size: 1cm (3HP) x 128.5cm x 1.8cm.

Module depth: 1.4cm.

Passive - no need for power

Package contents: 1x module, 2x M3 screws.

Ebay: https://www.ebay.co.uk/itm/302950476172

https://www.siammodular.com/takaab-s-multi-switched-passive-multiple
