Dimensions
8 HP
12 mm deep
Current Draw
Module does not draw current
Price
$62 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

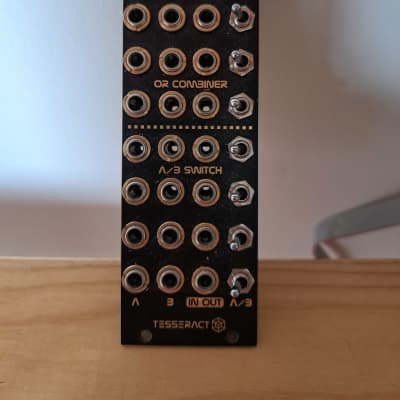

4 A/B switch, 4 OR combiner

This module has 4 channels of OR Combiner and 4 channels of A/B Switch.

The OR Combiner is conceived to select or sum trigger and/or gate signals, each channel has 2 inputs (A & B) and one output. A switch select which signal would be present at output, being the middle position of the switch the sum of both. It could be used with other type of signals but only the positive part of these would be present at the output stage (with a small lack of voltage because of the diodes and the pulldown resistor), so it could work with envelopes for example.

The A/B Switch selects between A and B and the middle position of the switch is a "mute", works with any kind of signal (cv or audio) and is bidirectional, so it works in both directions. Can be used with 2 input signals and 1 output or 1 input signal and 2 outputs.

Easy build with 0805 smd passives (only a few)

https://www.tesseractmodular.com/eurorack-modules/selecta


Ø 4.00 (2 Votes) Average Rating
submitted May 27th 2019, 20:35 by M4ngu | last Change Dec 31st 2022, 12:11 by pugix
