Dimensions
12 HP
21 mm deep
Current Draw
13 mA +12V
8 mA -12V
? mA 5V
Price
$95 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

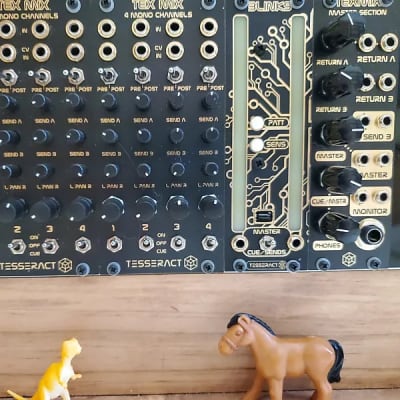

TEX MIX - 4 Mono Channels

Eurorack Modular Expandable Mixer

The TEX MIX concept is about building a mixer depending to your needs, number and type of channels.

This is a 4 mono channels expansion. Several of these modules can be added to provide more channels. Every channel features:
- Mono input
- Vactrol Gate (plug a CV into the GATE IN to modulate the volume of a channel, just like a classic VCA. When nothing is plugged in the GATE IN, the gate is normalled to fully open)
-SEND A control (switchable PRE/POST, in PRE mode the signal is present regardless to the channel volume control but only if the channel switch is in ON position)
-SEND B control (post-fader)
-PAN control (only affects the master bus)
-VOLUME control (affects the master, cue and POST sends, does not affect PRE-fader send)
-ON/OFF/CUE switch: ON - channel is routed to the master bus
OFF - channel is muted
CUE - channel is routed to the cue bus
