Dimensions
8 HP
14 mm deep
Current Draw
30 mA +12V
25 mA -12V
0 mA 5V
Price
$175 Price in €

This Module is currently available.

Specs are approved by the manufacturer

808 Analog Hi-Hat

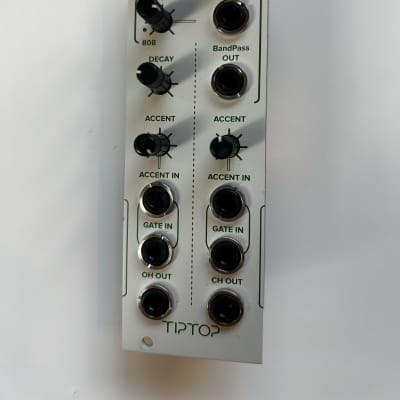

Introducing the HATS808, part of our new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS808 is the TR-808’s real, analog closed and open hi-hat circuits adapted for use in Eurorack modular synthesizer format and teste to sound just like it did back in the 80’s. Adapting to modular format has allowed us to add some special features for each voice like independent accent levels, a high-powered gain stage and dual input pluse-shaper. Filter Q and VC-Q knobs were added to the main band-pass filter for additional tuning and to allow you to generate crushed tones and self-oscillation at the knob’s max position, all without compromising the signature sound of the TR-808 hi-hat.

The HATS808 sizzling sound is made using six analog square wave oscillators mixed and processed by band-pass filters. This multi-oscillator design is what gives the 808 hi-hat sounds their unique metallica character and makes each HATS808 sound slightly different from one another. The original “choke” circuitry that makes it sound so dynamic and tight is fully implemented, just like the original, but can also be disabled if needed by disconnecting the internal connection between the two hats.

Just like the other drums in this series, the HATS808 high-powered output gain stage allows you to further harmonize the sound using distortion and clipping. On each input, we have included a dual pulse-shaper circuit so you can trigger your HATS808 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source. All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analog drums.

http://tiptopaudio.com/808-2/#hats808


Ø 3.64 (28 Votes) Average Rating
submitted Oct 13th 2012, 00:30 by Tiptop | last Change May 24th 2019, 16:00 by Tiptop
