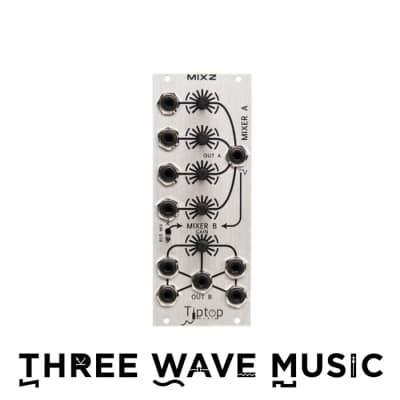

Dual Audio, CV, and Gate Mixer with Tiptop MixBus

MIXZ is a multi-channel mixing module for mixing audio, CV, and gate signals with excellent linear response and low noise. Balancing a clear visual layout and multiple mixers in a small footprint makes the MIXZ easy to use in a variety of configurations within a modular synth. Its high-quality analog mixing circuitry makes for a great sounding mixer with plenty of headroom, providing a smooth, organic merge of dynamics and excellent separation of mixing sections and channels. MIXZ has three sections:

Mixer A: a low-noise, 4-channel mixer with independent gain control for each channel.
Mixer B: a low- noise, 4-channel mixer with master gain control.
MixBus: a multi-channel mixer that mixes signals from modules utilizing the Tiptop MixBus.

Mixer A and B can be configured as either two independent, 4-channel mixers or as a single 8-channel mixer. If the output of Mixer A is not in use, then Mixer A will be routed internally to Mixer B forming the 8-channel mixer.

Tiptop MixBus is a new method we have developed to mix audio signals through the Eurorack power bus board without patch cables. A little bit of magic, eh? Although this technique is not ideal for a low-noise mix, we found it to be useful for some applications, including mixing our drum modules, which all have a MixBus-enabled output. The result is that your drum modules are always available and mixed on the master out of the MIXZ with a flip of a switch. This will save you time and frees up cables for repatching sound again and again, while keeping the channels of MIXZ free to bring other signals into the mix.

Combining the MixBus with Mixer A and B, the MIXZ sums dozens of channels in only 10HP.

http://tiptopaudio.com/mixz/

  • 14 mA +12V
  • 14 mA -12V
  • 0 mA 5V
  • 36 mm deep
  • Ø 3.67 (18 Votes) Average Rating

This Module is currently available.

$99
10 HP MixerDrum
submitted Dec 20th 2013, 18:24 by Tiptop | last Change Jun 3rd, 04:47 by Tiptop
Specs are approved by the manufacturer

Date Region Description Price Seller

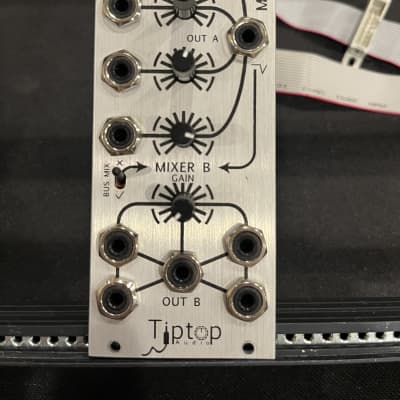

EUI'm selling my mint MIXZ module. It's absolutely pristine and works perfectl...€35,00Plexusgel View
EUMIXZ is a low-cost, analog, multi-channel mixing module for mixing audio, CV,...$71.44 View

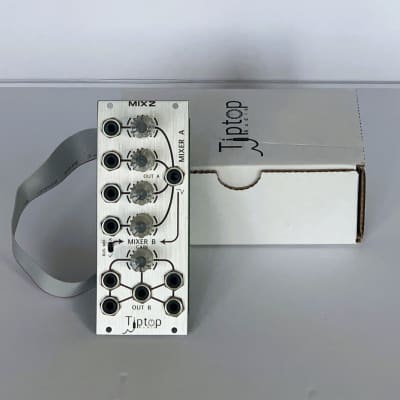

USA2 available. Minor to no rack rash. Might have OG box. Shipping included in ...$75.00Larkstarr View
