8 HP
20 mm deep
Current Draw
25 mA +12V
25 mA -12V
0 mA 5V
$150 Price in €

This Module is currently available.

Specs are approved by the manufacturer

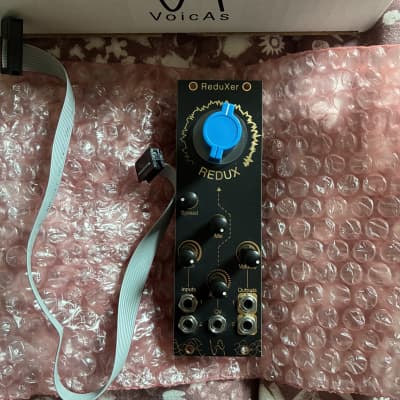

Reduxer is Stereo sample/bit reducer effect module.

Reduxer is a stereo sample/bit reducer effect module.
Depends on it's signal, It can produce dynamic range of sounds from knurly bitcrushing to formant/vowel style effects.

Technical Specifications

Custom made Redux potentiometer with 300 degrees rotation for extra "crashing" resolution.
Two proprietary reduxer circuits for stereo effect.
Inputs are normelized - supporting mono to stereo configuration.
Stereo spread offset for "motion" effect in the stereo field.
Redux Drive CV input with attenuator for external control of the bit reduction rate.
Wet/Dry mix.
input gain amplifiers for pushing the effect to it's limits.
Noise filtering and resettable fuses on the module's power input.
Reverse current protection.


Ø 5.00 (1 Votes) Average Rating
