Dimensions
20 HP
25 mm deep
Current Draw
110 mA +12V
100 mA -12V
0 mA 5V
Price
$300 Price in €

This Module is currently available.

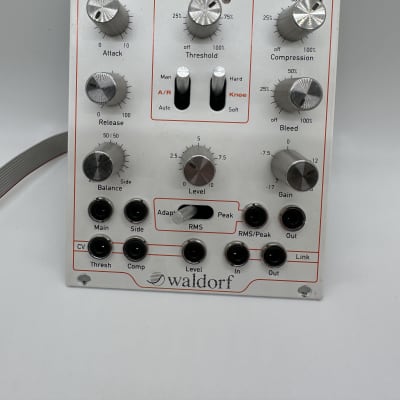

Compressor Module

A true high-end analogue compressor not only adds punch to your signal, but it also can be modulated in intriguing and unconventional ways!

Side-chaining with a adjustable balance control will open a huge set of modular possibilities.

The cmp1 has all the features you expect from a modern compressor including attack and release control, automatic and manual modes, hard and soft knee as well as output gain and bleed amount of the original signal.

  • True analogue high-end compressor
  • Flexible side-chaining
  • Control path based on controllable balance of side and main signal
  • RMS and Peak modes
  • Threshold and compression controllable from panel with additional CV-inputs
  • Attack & Release in manual or automatic mode
  • Hard- and soft-knee compression
  • Bleeding control for mixing original signal to compressed output
  • Overall gain control
  • Input level control
  • Separate output of detector signal for use as envelope follower
  • Additional level control input for optional use as exponential VCA
