Dimensions
4 HP
55 mm deep
Current Draw
21 mA +12V
14 mA -12V
0 mA 5V
Price
$119 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Tailored to use CV from theremin antenna and convert gesture to gate and trigger events (up to 3 positions in space)

It allows to use the CV output of the theremin antennas (Etherwave Plus, E-Pro, …) and to convert it to gate and trigger output.

The potentiometer makes it possible to set each of the three release distances and to store them in memory in the module (thus the parameters are memorized during the extinction of the module).

For each distance two kinds of outputs are possible: gate and trigger.

The gates are triggered as soon as the distance of the hand is higher than the one that has been set and stays as long as the hand does not go down. This makes it possible to trigger the envelopes and maintain the sound.

Triggers are short pulses (around 10ms). They are intended to trigger percussion or clocks signals (play a sequencer by hand)

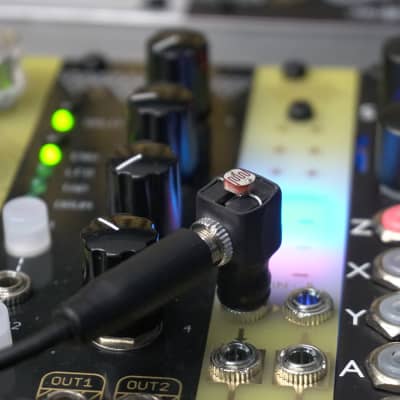

Note: the picture is the prototype. The released version will have some inversions on the panel, for better ergonomy.

https://www.wavelicker.com/en/thereminator/
