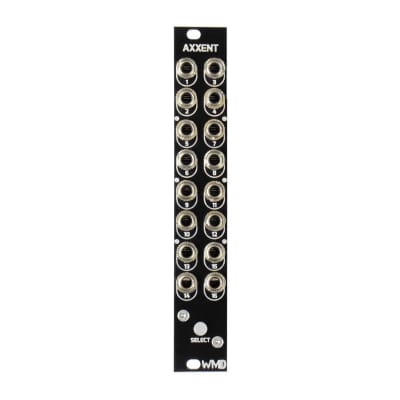

Accent Expander for METRON trigger and gate sequencer

AXXENT is an expander module for the METRON trigger and gate sequencer and adds 16 "accent" gate outputs. Each track is specifically tied to METRON tracks, making it a very intuitive addition to any METRON sequencing ecosystem.

Use AXXENT to send signals to additional envelopes, slews, drum accents, and other gate triggered functions.

  • 16 additional gate outputs for METRON
  • Accent tracks are tied to Metron tracks for ultimate inuitivity.
  • Get back tracks once used for accents!
  • Integrated user interface with METRON
  • Easy to program and learn
  • Fast tactile interface

SPECS
Dimensions:
Width: 4HP (20.32mm)
Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)
Depth Including Cables: 43mm
Power: 16 pin Eurorack standard power cable
Reverse Polarity Protected

Do not connect power to expansion headers.
Typical Power Consumption: +12V: 40mA, -12V: 0mA
Outputs:
Channel Outputs: 1-16: 470 ohm Impedance, 0V or 10V Logic High
Channels are simultaneously updated.

Regulatory:
RoHS, CE, & WEEE Compliant
Made with Lead Free solder and processes

  • 40 mA +12V
  • 0 mA -12V
  • ? mA 5V
  • 43 mm deep

This Module is currently available.

$199 Price in €
4 HP Expander
