Dimensions
4 HP
30 mm deep
Current Draw
50 mA +12V
50 mA -12V
? mA 5V
Price
$250 Price in €

This Module is currently available.

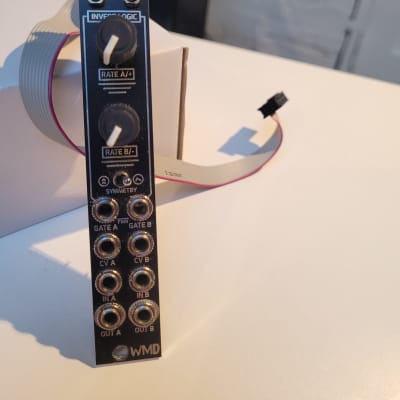

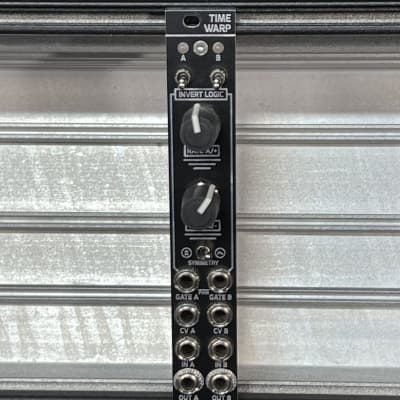

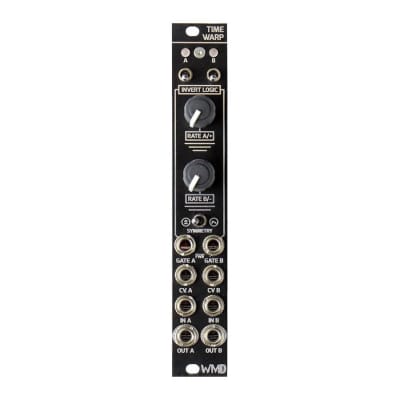

Dual Channel Gated Slew, Envelope, & Envelope Follower

The acid style pitch slew effect has made it to Eurorack in a small easy to use package. You no longer need to dedicate more complicated modules patched in wacky ways to achieve this classic sound. Finally, a dual slew, with the right interface, at the perfect size. Add some slide and smoothness to your patches on your own accord with Time Warp.

TIME WARP is a dual channel, gated slew module with some extra features that make a powerful and versatile addition to any Eurorack Modular Synthesizer System.

Its unique, Gated Slew function allows users to add slew to any voltage signal at designated times by sending it a gate signal from a sequencer or similar source. Switch it up with Invert Logic on the gate input, or use the switch as a real time performance tool for hands-on control over when the slew will take place.

With two modes of symmetry and a full wave rectifier on the input, Time Warp can function as 2 independent Slews, two A/R Envelopes with tied controls, or even as an envelope follower, taking audio and turning it into a useful envelope signal. CV control over the Rate of slew! Time warp puts all of that in a compact, 4hp package.

  • Two independent Slew Channels
  • Gated Slew function for adding per-step slide to any stepped voltage sequence
  • Asymmetrical mode for asymmetrical slewing and envelope generation
  • Invert Logic for real-time performance control over the module's actions
  • Full-Wave Rectifier - Envelope follower from incoming audio
  • CV Control over Slew or Rise/Fall time depending on symmetry setting.

SPECS
Size: 4hp (20.32mm)
Depth: 30mm(with cables)
Power: 50mA +12V, 50mA -12V

Inputs:
CV - 100k ohm impedance
IN - 50k ohm impedance

Gate Inputs:
100k ohm impedance
2V threshold Schmitt Trigger
Patching into the Gate input disables the Full Wave Rectifier

CV Outputs:
470 ohm impedance, zero-impedance compensating buffer
1V/Octave no drop
22Vpp range
Gain error: 0.1% maximum. 0.025% typical.
Offset error: 1.5mV maximum. 0.5mV typical.

Regulatory:
RoHS, CE, & WEEE Compliant
Made with Lead Free solder and processes

https://wmdevices.com/products/time-warp
