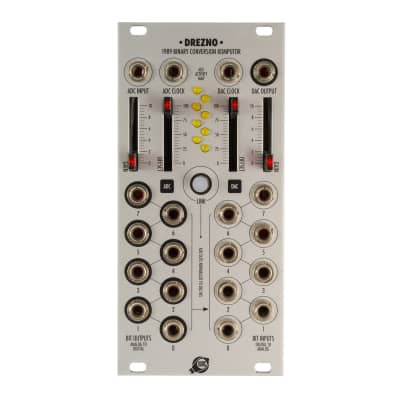

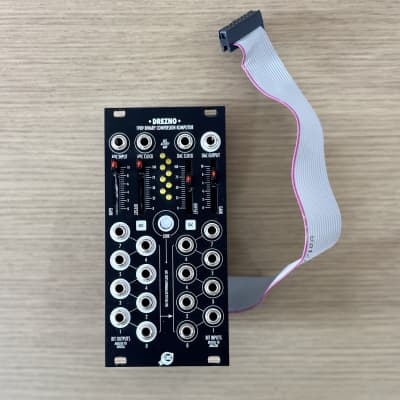

1989 Binary Conversion Komputor

Drezno consists of a flexible ADC (analog-to-digital converter) and DAC (digital-to-analog converter) that can be cross-patched, or used independently. It offers:

  • digital manipulation of analog signals and voltages
  • converting slowly changing voltages to 8 rhytmic gates
  • converting combinations of up to 8 gate signals to complex waveforms
  • quantization and bit mangling or crushing of signals
  • a digital sample&hold function

The input is converted to digital representation and made available in the form of 8 binary (gate) signals. These signals can be freely mixed, scrambled, inverted, cross-patched, etc. At the end, 8 binary signals are converted back to analog domain. Both conversions may be performed synchronously with external clock patched to respective clock inputs, or asynchronously, at high speed of internal clock. Drezno can handle signal changes as fast as 1MHz, so there is no aliasing with audio rate input.

Drezno may also act as an input/output device for an upcoming barebone digital signal processing subsystem.

http://xaocdevices.com/main

  • 50 mA +12V
  • 35 mA -12V
  • ? mA 5V
  • 20 mm deep
  • Ø 4.38 (8 Votes) Average Rating

This Module is currently available.

$291 submitted Apr 13th 2017, 17:48 by ibsen | last Change May 10th 2017, 12:26 by ibsen
Specs are approved by the manufacturer

Date Region Description Price Seller

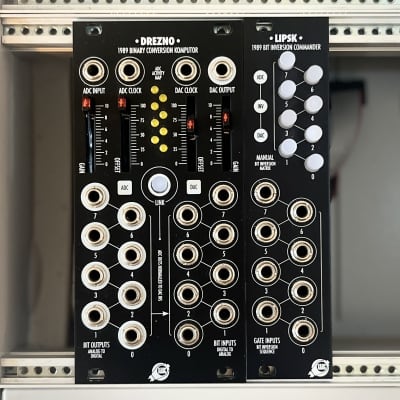

EUXaoc Devices Drezno + LIPSK is *like new* ###technical condition * first ...€300,00OlivierWah View
