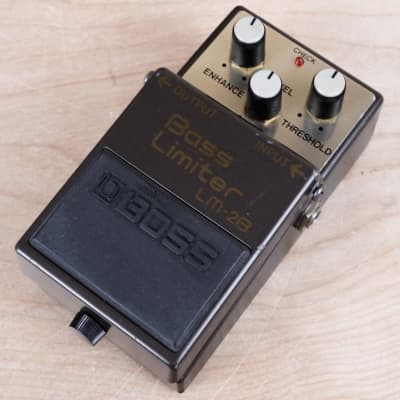

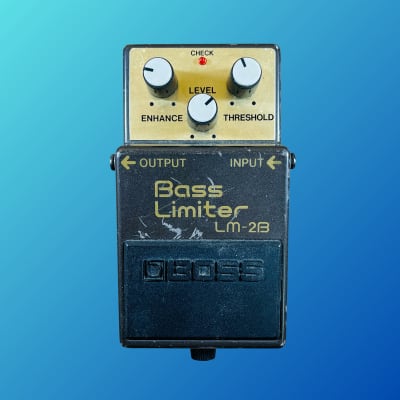

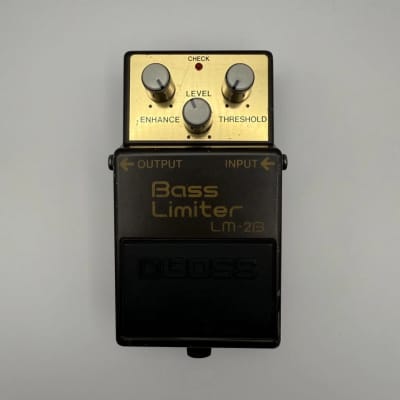

LM-2B Bass Limiter

Bass Limiter

The LM-2 was targeted towards guitar players but feedback from the market told the Boss engineers that it was more often bass players that was using it. When the second generation limiter was launched, it was labeled Bass Limiter to make it clear that this was for bass use.

With different touch techniques and clear sounds, bass players have a very large dynamic area of sound. With the LM-2B, you can limit this area in order to make the weakest signals appear louder and the loudest signals appear weaker. The LM-2 gives you a little volume drop when it is turned on. The LM-2B has a built in enhancer circuit to couteract this.

Specifications
Controls: Enhance, Level, Threshold
Connectors: Input, Output, AC Adaptor
Current Draw: 16mA
Weight: 400g
Input Impedance: 1 Mohm
Residual Noise Level: less than -90dBm (IHF-A)
Recommended Load Impedance: More than 10kOhm
Recommended AC Adaptor: ACA Series

Labels
Silver – Made In Taiwan
The LM-2B was sold from April 1990 to December 1994.

http://www.bossarea.com/boss-lm-2b-bass-limiter/

  • 73 mm wide
  • 129 mm high
16 mA / 9 V DC / Negative Center

This Pedal is discontinued.

submitted Jul 21st 2017, 20:57 by icjburke | last Change Dec 13th 2019, 20:58 by motorhead412
