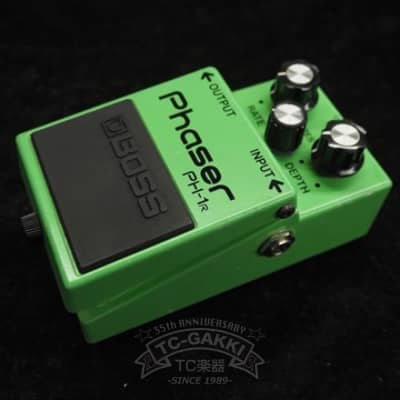

PH-1R Phaser

Analog Phaser

This was an updated version of the original PH-1. It had an additonal “Resonance” knob (feedback control) to increase the tonal variations. This is a 4 stage phaser like the PH-1 and its biggest competitor at the time, the MXR Phase 90. It can create an wide array of different tones.

Version Differences

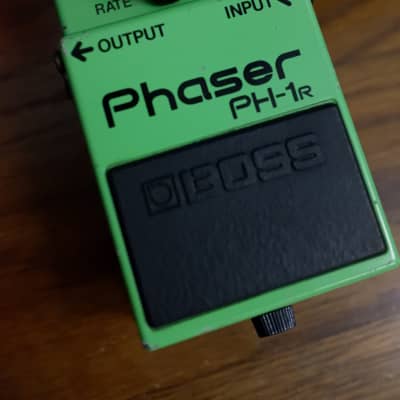

The earlierst versions the P in PH-1R was located under the s in Phaser. Later the font was slightly changed and the P was then found under the e i Phaser. This change happened around serial number 14xx00. The early PH-1R’s with 4 digit serial numbers had a silver thumb screw instead of the later black screw.

Specifications

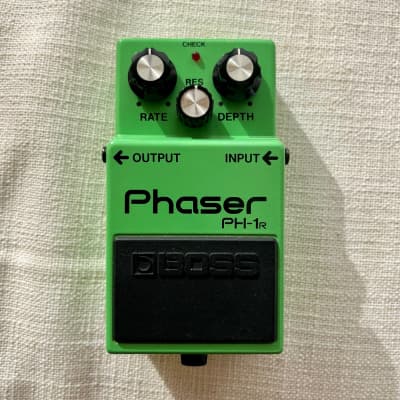

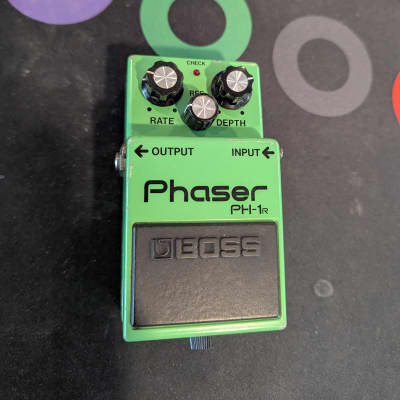

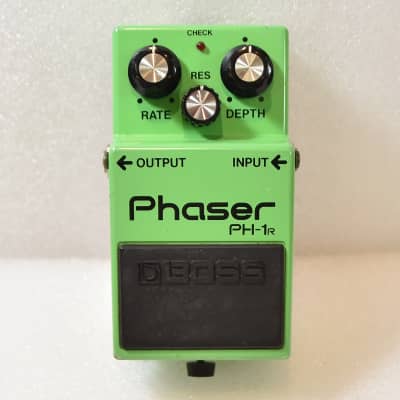

Controls: Rate, Resonance, Depth

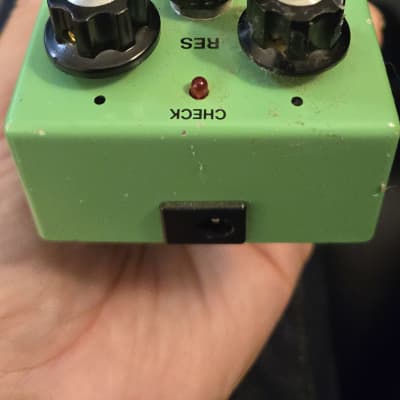

Connectors: Input, Output, AC Adaptor
Current Draw: 11 mA (DC 9V)
Weight: 400 g (.88 lbs)
Input Impedance: 470kOhm
Signal/Noise Ratio: Over 90dB (IHF-A)
Recommended Load Impedance: Over 10kOhm
LFO Speed: 100 ms ~ 16 s
Recommended AC Adaptor: ACA Series

Labels
Black – Made In Japan
The PH-1r was sold from October 1980 to May 1985.
