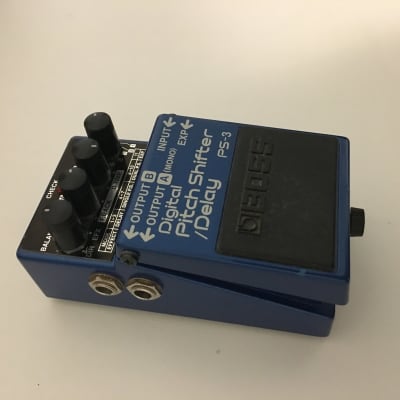

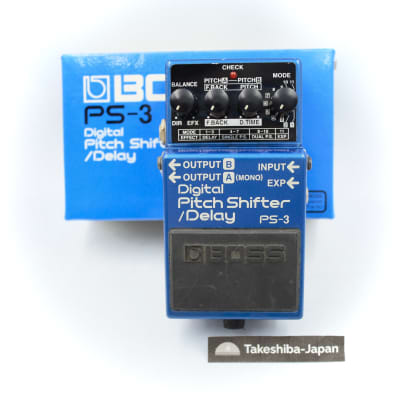

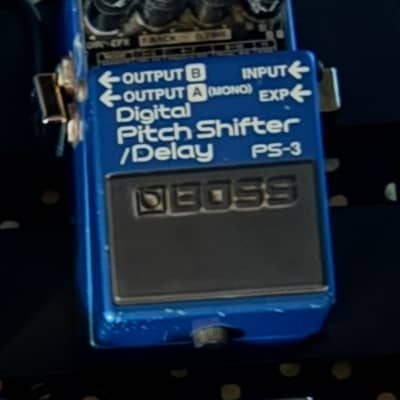

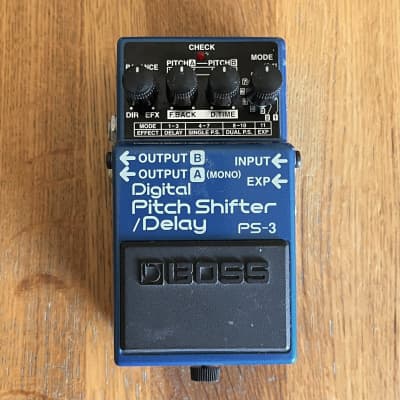

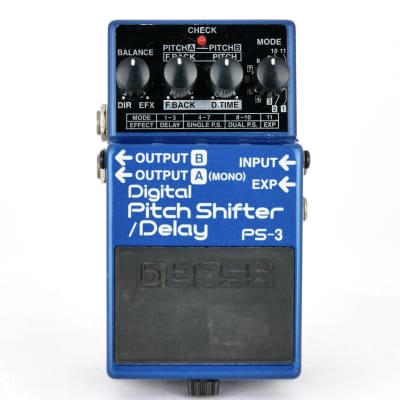

PS-3

Digital Pitch Shifter/Delay

The PS-3 contains both a pitch-shifter and a delay. There is seven pitch shift modes, and three delay modes as well as an expression mode. The pitch shift level is selectable in 26 steps – 24 chromatic steps over a +/- 1 octave range plus 2-octave up-down capability. The delay is up to a maximum of 2000 ms just like the DD-5.

Modes
Delay, 32ms – 125ms
Delay, 125ms – 500ms
Delay, 500ms – 2000ms
Detune, adds a slightly pitch-shifted sound to the input sound to create a detune effect
Fast Pitch Shift, very little delay in pitch shifted sound. Good for slightly shifted sounds.
Slow Pitch Shift, more delay in pitch shifted sound but very accurate. Good for greatly shifted sounds.
Inverse Pitch Shift, a mode where the pitch shifted sounds are reversed
Detune & Detune, adds two slightly pitch shifted sounds to the input signal to create a fat detuned effect.
Detune & Pitch Shift, detune output from Output A and Pitch Shifted sound from Output B
Pitch Shift & Pitch Shift, Pitch shifted sounds from both output. Pitch A controls Output A and Pitch B controls Output B
Expression, A connected expression pedal will set the pitch shift between Pitch A and Pitch B

Specifications
Controls: Balance, Feedback, Pitch, 11-way Mode switch
Connectors: Input, Expression Pedal, Output A, Output B, AC Adaptor
Current Draw: 70 mA (DC 9V)
Recommended AC Adaptor: PSA Series

The PS-3 was sold from March 1994 to January 1999.

https://bossarea.com/boss-ps-3-digital-pitch-shifter-delay/

  • 73 mm wide
  • 129 mm high
70 mA / 9 V DC / Negative Center

This Pedal is discontinued.
