Dimensions
146 mm wide
121 mm high
Current Draw
? mA / ? V AC/DC
Price
$91 Price in €

This Pedal is currently available.

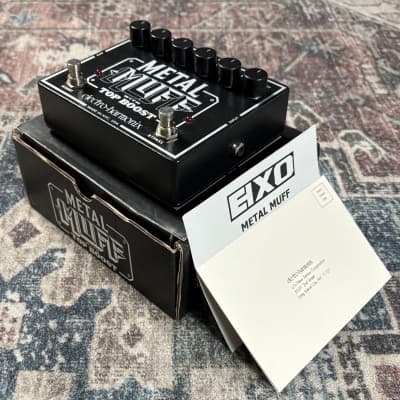

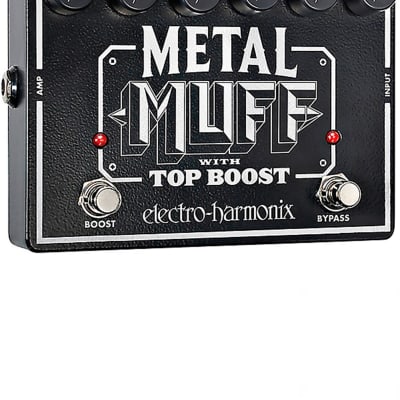

Distortion with Top Boost

From: https://www.ehx.com/products/metal-muff
"The ultimate metal distortion pedal. Three powerful EQ bands sculpt the mids and 6 controls shape the sound precisely for your groove from slithering mercury to lead belly blast furnace dross. Its unique Top Boost adds serious bite with its own control knob and footswitch so you can kick it on for searing leads."

From: https://www.ehx.com/assets/instructions/metal-muff.pdf
The Metal Muff utilizes three powerful EQ bands, including a midrange control designed for perfect contouring and beautifully sculpted mids. The Metal Muff offers commanding bass and defined high end—coupled with user-controlled distortion from pinched-edge to totally crushing—making it a heavy metal gold mine.
- CONTROLS -
DISTORTION CONTROL
– adjusts the amount of input gain.
BASS CONTROL
– provides up to 14dB of cut and boost in the bass frequency range.
MID CONTROL
– provides up to 15dB of cut and boost in the middle frequency range.
TREBLE CONTROL
– provides up to 10dB of cut and boost in the treble frequency range.
TOP BOOST CONTROL
– provides an extra ‘bite’ by boosting a narrow band of high frequencies. When Top Boost is inactive, the Top Boost control has no effect.
VOLUME CONTROL
– sets the output level.
TOP BOOST FOOTSWITCH
– Engages the TOP BOOST feature of the METAL MUFF. The corresponding LED is lit when TOP BOOST is engaged.
BYPASS FOOTSWITCH
– Selects whether the METAL MUFF is engaged or bypassed. the corresponding LED will be lit when the pedal is engaged, and dark when bypassed.
INPUT Jack
– This ¼” jack is the audio input to the METAL MUFF.
OUTPUT Jack
– This ¼” jack is the audio output from the METAL MUFF. When the METAL MUFF is in Bypass mode, the OUTPUT jack is connected to the INPUT jack through a buffer.

https://www.ehx.com/products/metal-muff


Ø 5.00 (2 Votes) Average Rating
submitted Feb 7th 2018, 06:00 by hexwing | last Change Jul 22nd 2018, 10:34 by patcupo
