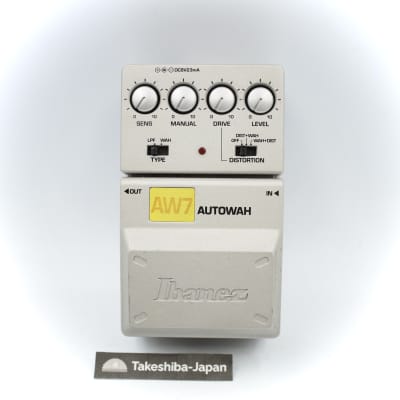

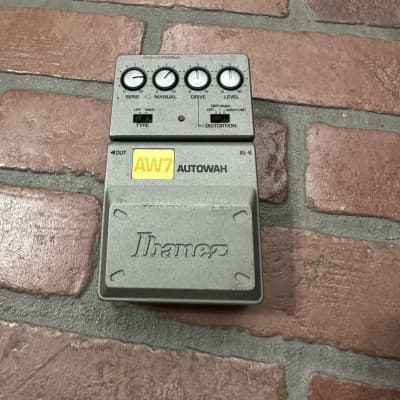

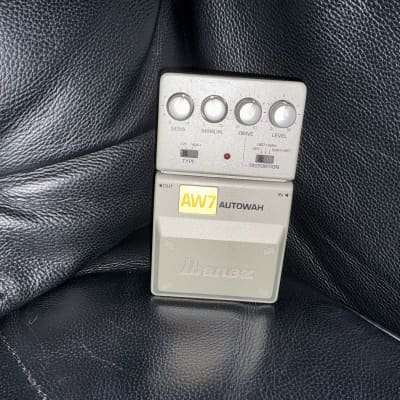

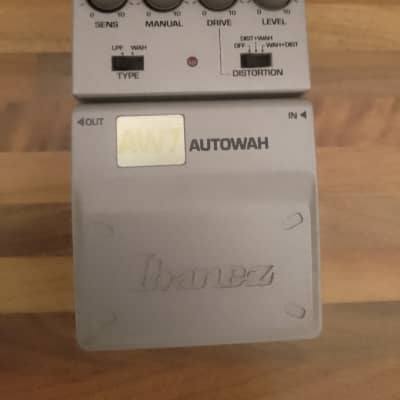

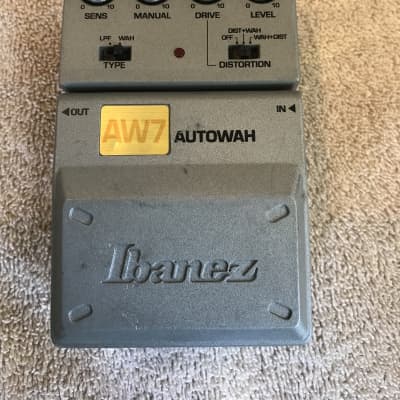

AW7 autowah

lowpass filter-autowah-distortion

Sens
Adjusts the response to changes in your picking dynamics. With a setting of 0 there will be no response and the AW7 will function as a fixed wah.

Manual
This has the same function as the pedal of a wah pedal. Turning the knob to the right is equivalent to advancing the pedal.

Drive
Controls the saturation level. The saturation and sustain effects will increase when the knob is turned to the right.

Level
Controls the overall volume of the pedal. Volume is increased when turned to the right and decreased when turned to the left.

Type
(LPF / Wah)
Switches between two types of wah sounds.
LPF: A low-pass filter that cuts only the high range. The low range will not be lost.
Wah:A conventional wah, which is a band-pass filter that cuts the low and high range sounds.
Distortion
(Off / Dist+Wah / Wah/Dist)
Selects how the internal distortion will be connected.
Off: Distortion will not be applied.
Dist+wah: Connect in the order of distortion => Wah. This intensifies the effect of the wah.
Wah+Dist: Connect in the order of wah => distortion. This is the most commonly-used connection.
