Dimensions
72 mm wide
120 mm high
Current Draw
15 mA / 9 V DC / Negative Center
Price
$38 Price in €

This Pedal is currently available.

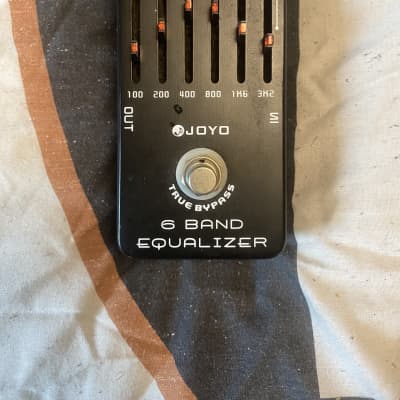

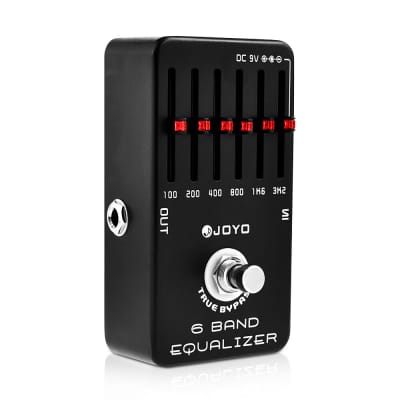

JF-11

6-Band Equalizer

1.Each band provides 18 dB± range to help find favourite tone
2.This equalizer can exponentially improve the range of sound
3.The output will be transformed into a more warm and natural sound
4.Frequency bands: 100Hz, 200Hz, 400Hz, 800Hz, 1.6MHz, 3.2MHz
5.True bypass design to minimize the tone loss
6.LED power indicator
7.Powered by 6F22 9V battery (included)

Specifications:
1.Input impedance: 500 Kω
2.Output impedance: 10 kω
3.Running current: 15 mA
4.Voltage: 9V battery/adapter
5.Dimension: 120 x 72 x 55 mm
6.Net weight: 290g
7.Color: black

Package including:
1 x JOYO JF-11 Guitar 6-BAND Equalizer Effect Pedal l Black
1 x user manual

The Joyo JF-11 6 band graphic equalizer pedal gives you a great range of tonal possibilities and the option to boost your signal and get the sound you want! Excellent value for money and a solid metal construction mean you'll get years of reliable use, on or off stage!

True Bypass Runs off 9 Volt battery (included) or 9v Power Supply (Optional)

https://www.joyoaudio.co.uk/JOYO-JF-11-6-band-equalizer-guitar-effect-pedal


submitted Jul 30th 2020, 14:29 by motorhead412 | last Change Oct 21st 2021, 10:25 by pkillion
