146 mm wide
64 mm high
Current Draw
? mA / ? V AC/DC
$70 Price in €

This Pedal is currently available.


Isolated Power Supply

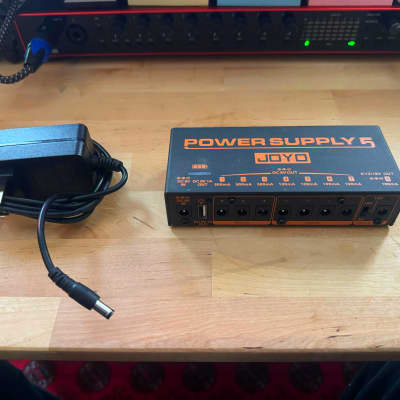

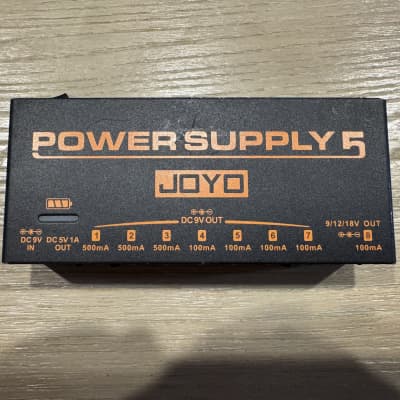

JOYO's JP-05 power supply has 8 DC outputs and 1 standard USB output, one of the 8 outputs can be switched between 9V, 12V and 18V for the odd pedals in your collection that just want a little bit more voltage. The 5V USB output enables you to load your cell phone, iPad and other portable devices.


  1. With a built-in 7.4V/4400mAh rechargeable lithium battery pack, charging time is about 2.5hrs.
  2. 4 DC 9V 100mA outputs.
  3. 3 DC 9V 500mA outputs.
  4. 1 DC 9V/12V/18V adjustable output, maximum output current is 100mA.
  5. With battery level indicator. It stops charging automatically when it is fully charged.
  6. One 5V output USB port, compatible for charging cell phones, tablets and other portable devices.

  7. Lasts 2 hours with high current digital pedals; lasts more than 10 hours with 8 analog pedals

Packing List:

Power supply: 1 piece (dimensions:1466535mm weight:620g )
Owner's manual: 1 piece
9V/2A power adapter: 1 piece
DC Cable: 8 pieces (plug's size: outside diameter:5.5mm, inside diameter: 2.1mm)
Reversed polarity cable: 1 piece (plug's size: outside diameter:5.5mm, inside diameter:2.1mm )


Ø 2.00 (1 Votes) Average Rating
submitted May 25th 2019, 08:08 by nefastvs | last Change Jan 30th, 19:58 by nefastvs
