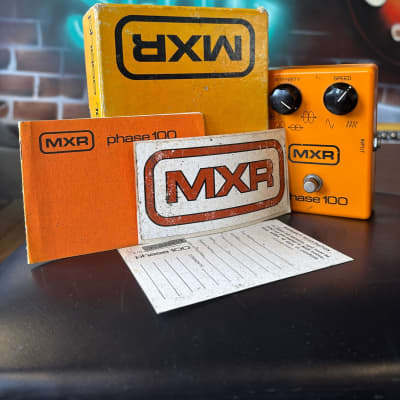

Phase 100

MXR

DESCRIPTION
• Big brother of the Phase 90 with a broader range of sounds
• Four-position rotary switch selects four preset waveforms
• Spacey, psychedelic ambience for guitar solos or chords

POWER
One 9-volt battery (remove bottom plate to install) or a 9-volt AC adapter.

SPECIFICATIONS
Input Impedance: 500 kΩ
Output Impedance: 3 kΩ
Maximum Intput Level: +5 dB
Maximum Output Level: +8 dB
Noise Floor*: 95 dBV
Phase Shift Range: 180 Degrees
Bypass: Hardwire
Current Draw: 6 mA
Power Supply: 9 volts DC

https://www.jimdunlop.com/product/m107-7-10137-00656-0.do?

  • 92 mm wide
  • 123 mm high
? mA / ? V AC/DC

This Pedal is currently available.

$200 Price in € submitted Jun 9th 2017, 15:43 by Fabi | last Change Feb 22nd, 16:11 by noiseanddrone
