Dimensions
64 mm wide
114 mm high
Current Draw
? mA / 9 V DC / Negative Center
Price

This Pedal is currently available.

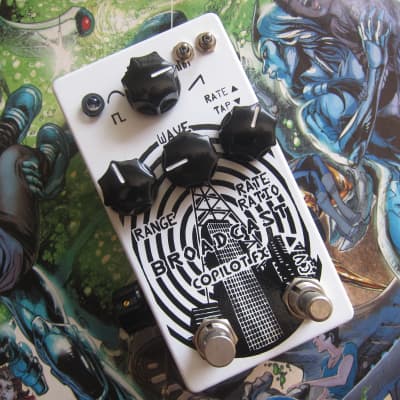

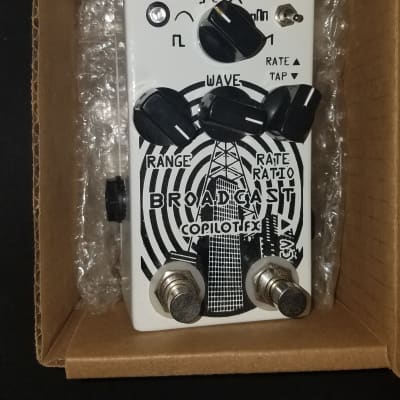

LFO pedal / Modulation expresion pedal

The Broadcast is a control processor device to modulate the expression jacks on your pedals, like a extremely trained knob tweaker, so you can concentrate on the playing while it sweeps up and down a parameter. This pedal consist of a LFO with 6 waveforms . The output can be a mono jack or TRS Jack (depending on the device you want to control, TRS is more universal). The range knobs let you set the modulation amount to be a subtle variation to a full blast sweep. For more accurate control an Aux knob has been added for fine tuning the range amount. The Broadcast was updated with an extra toggle to set the rate of the LFO, Toggle Up the ratio knob works as traditional speed control, Toggle Down is in Tap Tempo Mode (tap twice to set the tempo), the ratio knob will select/adjust the multiplier with x1, x2, x3, x4, x8 and x1/2.

By itself the broadcast won't produce any sounds, and it will only work with pedals that already have expression jacks.

LFO type toggle: selects if the LFO rate is tap tempo (rate knob controls the tap ratios) or the rate is set by the knob (traditional speed control).

Range: controls the amount of modulation.

Aux: Fine tune for the range, also allows to bypass the broadcast, so you can have toe down or heel up position (similar if you were using an expression pedal.

Rate: Sets the rate of the LFO in manual mode or the tap ratio multiplier in tap mode.

Wave: Selects the waveshape of the LFO.

Silk Screened artwork with enamel ink into a powder coated aluminium case.
Dimensions: 4.5" x 2 1/2" x 2 1/2".
Powered only by DC 9v power Jack (center negative), no batteries option.
Expression Jack output: 50k.
CV out: 0-5v CV output to syncs with the Bandwidth and broadband to increase the number of outputs

http://copilotfx.com/broadcast.html


Ø 4.00 (1 Votes) Average Rating
submitted Jul 31st 2018, 14:56 by TheTaraStark | last Change Jul 21st 2020, 13:50 by MDH_bass
