Dimensions
279 mm wide
127 mm high
Current Draw
600 mA / 9 V AC/DC / Positive Center
Price
$349 Price in €

This Pedal is currently available.

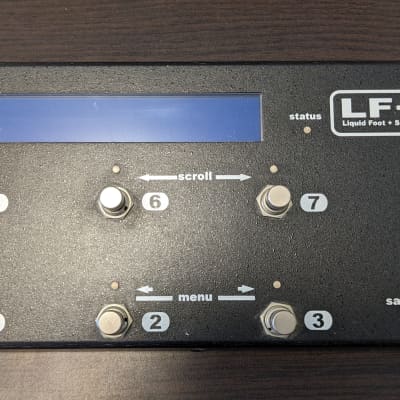

FAMC Liquid Foot+ Mini

Full featured MIDI pedal controller

Features & Specifications
* 8 Physical Buttons
* Programmable LEDs with 7 bright and 7 dim color options
* Status Light for Tap Tempo and User programmable
* Fully Programmable at Preset, IA-Slot, Song stages
* MIDI OUT (7 pin) w/ MIDI IN and Phantom Power
* 2 Expression pedal / 1&2 Button input connectors
* Software Editor For MAC and PC
* USB Connection
* Direct control and live feedback from Fractal Axe FX (I/II/III) and\or Kemper KPA
* Size: 11″ x 5″ (switches are 2.75″ apart on each row, switches are 2″ apart between top to bottom row)
* Weight: 3 Lbs
* Power: 9-12V AC or DC (center +) 600ma

Capability
* 384 Presets
* 254 Songs
* 128 Set Lists (60 songs each)
* 60 Pages (custom button layouts)
* 180 Instant Access Slots
* 60 Instant Access Maps
* 254 Stored Sysex Messages
* 7 Instant Access Groups
* 7 Instant Access Post Triggers
* hundreds of parameters and programming commands
* Massive control and programability at all levels

Software
LF+ Series software editor for Mac and PC allows you to take advantage of the customization features in an easy to use software package. Foot controllers can also be programmed without the software.

Link to product page

https://www.famcmusic.com/liquid-foot-controllers/mini/
