Dimensions
170 mm wide
133 mm high
Current Draw
80 mA / 9 V DC / Negative Center
Price
$399 Price in €

This Pedal is discontinued.

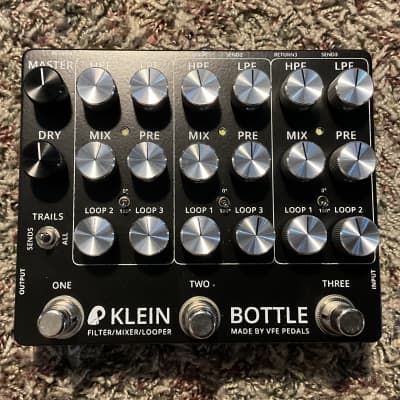

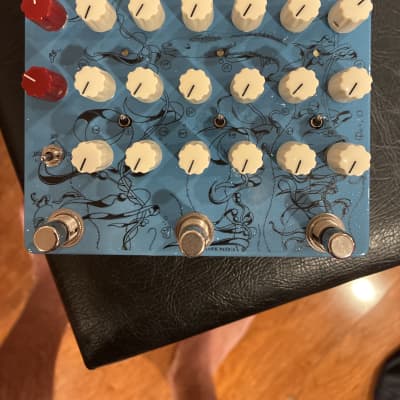

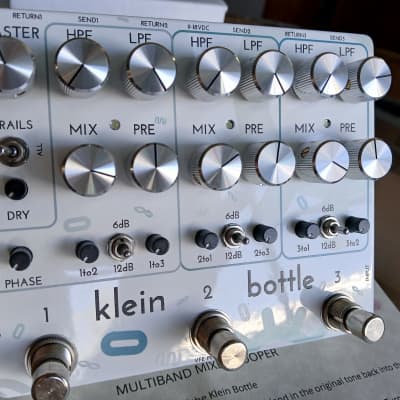

Klein Bottle

VFE

Multiband mixer/looper

The Klein Bottle was designed for the noise makers, soundscape artists, endless tinkerers and tone wizards. This epic pedal starts by splitting the input signal into three FX loops. Each FX loop has dedicated controls for pre-gain, HPF/LPF (bandwidth filters), and main mix level. This allows you to send different parts of the signal to different effects, and blend them all back together to create new tones out of your existing pedals.

But wait, there's more! The magic happens when you use the independent feedback controls to send the signal from one FX loop into another...and then back again! Keep your existing tone intact with the DRY knob, while layering a cornucopia of sonic goodness on top.

  • Dedicated mixing, EQ, and routing controls for each FX loop

  • Variable phase shift circuit on FX loop #1 to correct phasing problems, or to create phase cancellations between effects.

  • Each FX loop's on/off foot switch can be set to latching or momentary operation

  • 3 trails modes - ALL, SENDS (just the feedback loops), and none (middle position)

  • Dry blend for mixing back in the original signal

  • Filters can be 6dB or 12dB for more extreme EQ cuts

http://vfepedals.com/klein-bottle.html


submitted Mar 20th 2018, 14:36 by manfromuncool | last Change Oct 4th 2020, 23:18 by ShinySawtooth

6 Users are observing this
