Barton BMC034 Switched Resistor VCF

BMC034 Switched Resistor VCF

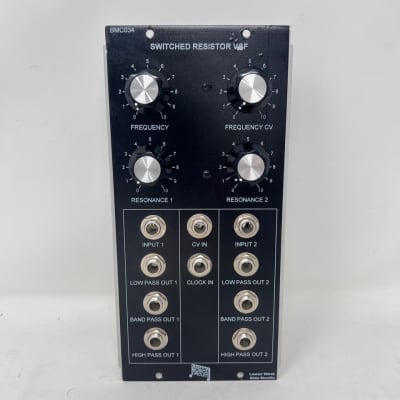

Switched Resistor VCF from Barton Musical Circuits built by Lower West Side Studio

The BMC034 Switched Resistor Voltage Controlled Filter from Barton Musical Circuits offers two state-variable filter sections controlled by a common Frequency control. The filter utilizes analog switches to adjust the frequency of the filter.

The filters can be used in series or to process stereo signals.

The BMC034 Switched Resistor VCF comes in a 2U width with 1″ (25.4mm) knobs controlling 4 potentiometers;

Frequency (common)
Frequency CV
Resonance 1
Resonance 2
Inputs include;

Signal Inputs 1 & 2
Frequency Modulation Control Voltage
Clock (for analog switches)
Low Pass, Band Pass and High Pass Outputs are available on both channels. All Outputs are simultaneously active.

The module operates at +/- 15V and comes with a style power connector.

  • ? mA +15V
  • ? mA -15V
  • ? mA 5V
  • 55 mm deep

This Module is currently available.

2 HP Filter
