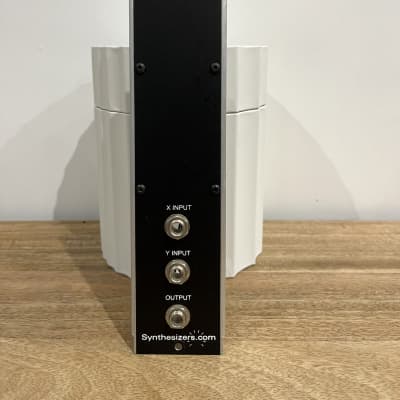

Q116 Ring Modulator

Ring Modulator

The Q116 Ring Modulator performs a variation of amplitude modulation in which two input signals are multiplied creating an output that contains the sum and difference of the input signals (called sidebands), but without the original input signals themselves. Sometimes referred to as a 'Balanced Modulator'.

The result is a very strange clanging, bell-like sound that can only be created with a ring modulator. Useful for producing gong sounds, bell sounds, and many strange sounds having no description.


  • 30 mA +15V
  • 30 mA -15V
  • 0 mA 5V
  • Ø 3.75 (4 Votes) Average Rating

This Module is currently available.

$105 Price in € submitted Today, 08:06 by RogerArrick | last Change Sep 10th 2018, 14:24 by RogerArrick
Specs are approved by the manufacturer
