Dual Sample and Hold

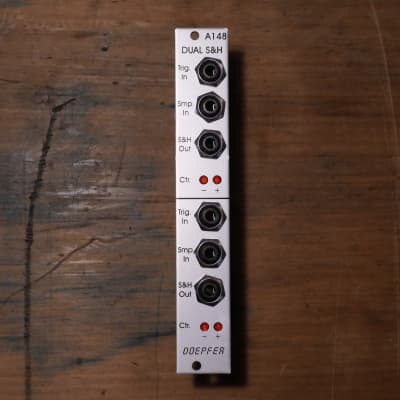

Module A-148 (Dual S&H) has two identical sample & hold modules, designed to produce 'staircase' voltages. The signal present at the sample input is sampled at a rate set by the signal at the trigger input, and held at that voltage at the S&H output.

The exact shape of the staircase depends on the sort of waveform at the sample input: NOISE or RANDOM signals produce random patterns; an LFO produces rising or falling staircase patterns.

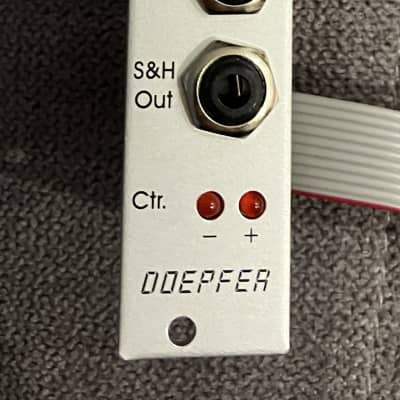

Two LEDs for each S&H indicate the voltage (positive or negative) of the sampled signal.

For more detailed information please look at the English A-148 Dual S&H user's manual

http://www.doepfer.de/a148.htm

  • 20 mA +12V
  • 20 mA -12V
  • 0 mA 5V
  • 30 mm deep
  • Ø 4.14 (43 Votes) Average Rating

This Module is currently available.

$80 submitted Oct 6th 2012, 13:36 by | last Change Nov 22nd 2017, 05:46 by mramlu

Date Region Description Price Seller
EUbuying two modules. extra 10% all is perfect payment : Paypal shipping :eu...€45,00fredbo65 View
EUThe overall condition of this *Doepfer A-148* is *like new* with little rack ...€45,00urogijani View

5 Users are observing this
