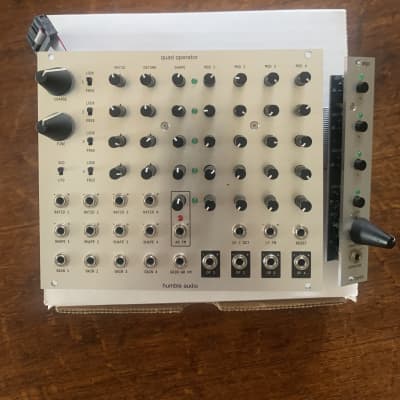

4 Variable Waveshape Operators for Linear FM Synthesis

Implementing frequency modulation synthesis completely from scratch in firmware, the Quad Operator is able to provide a modern take on frequency modulation synthesis.

  • One knob per function design for true ease of use
  • Any FM algorithm is possible via modulation matrix
  • The Algo expander provides algorithm save/recall and crossfading capabilities
  • Independent output per operator
  • Virtual VCA per operator for both animating modulation and output volume control
  • Includes a dedicated “AR FM” input with its own modulation sends, designed to bring an audio rate signal in from your rack for use as a modulator. Try processing a phase locked operator, and feeding it back in!
  • Each operator can also be unlocked then tuned and patched independently, making the module a great general purpose oscillator bank
  • Convincing digital emulation of classic analog waveshapes—sine, triangle, square, and saw
  • An LFO mode, enabled the generation of phase locked, complex modulation signals

www.humble.audio

  • 140 mA +12V
  • 13 mA -12V
  • 0 mA 5V
  • 25 mm deep
  • Ø 4.40 (5 Votes) Average Rating

This Module is currently available.
