Dimensions
12 HP
26 mm deep
Current Draw
25 mA +12V
15 mA -12V
? mA 5V
Price
$195 Price in €

This Module is currently available.

Specs are approved by the manufacturer

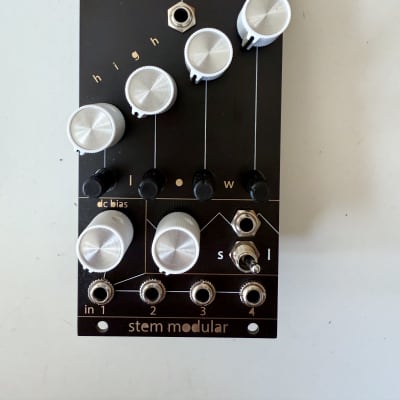

Four window comparators and an oscillator

Quad Comparator consists of four window comparators and a triangle oscillator. The window comparators allow users to set two voltage levels, one high and one low, and whenever the incoming signal is between these two levels the output will go high (LED is on, ~10V output), outside of those levels it will be low (LED is off, 0V). The four inputs of this module are normalled sequentially, so the four comparators can be used together, separately, or in any combination.

http://www.stemmodular.com/shop/quad-comparator


submitted Nov 19th 2021, 19:39 by stemmodular | last Change Nov 19th 2021, 19:51 by stemmodular
