Pulse Divider 20A

Modcan

The PULSE DIVIDER section of this dual function module takes an incoming clock or square wave and outputs a division of its frequency. This is useful for producing time based events that are an even clock division. An example use of this module would be to fire an Envelope generator on every second step of a sequence or use in conjunction with the Boolean module to produce unusual rhythms. Can be used in the audio range to produce sub octaves below a square wave frequency.

Features:

  • Divides a single pulse input into 2,4,8,16,32,64 and 128 divisions
  • Can be used as an octave divider in audio range
  • All seven outputs can be used simultaneously
  • Ideal analogue sequencer utility module

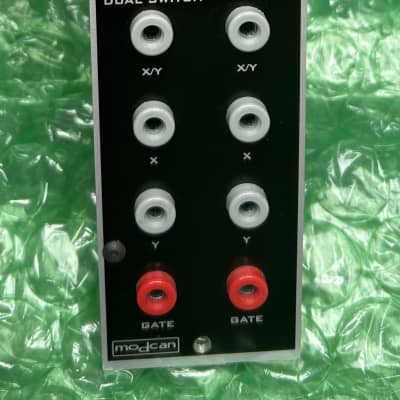

The second section of this module is a Voltage Controlled switch. When the Gate input is held high the switch passes the X input to the X/Y output. When the gate is low the Y input is switched to output at the X/Y. The opposite can also exist where a signal at the X/Y input can be switched to output from the X or Y jacks. This is an excellent module for gated routing of signals within a modular.

Features:

  • Switch between 2 inputs to 1 output or 1 input to 2 outputs
  • Input signals for switching can be modulation voltages, gates and audio
  • Inputs can be outputs and vice-versa
  • transparent low-noise design
  • Two independant switches
  • 20 mA +15V
  • 15 mA -15V

No info about availability.

submitted Dec 24th 2016, 15:46 by modulargrid | last Change Dec 24th 2016, 16:09 by modulargrid
