Dimensions
26 HP
25 mm deep
Current Draw
350 mA +12V
0 mA -12V
0 mA 5V
Price
$599 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Polyphonic Synthesizer Module

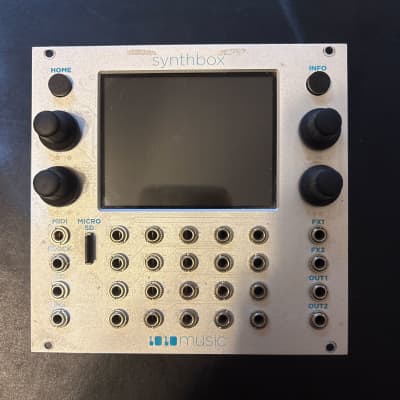

Synthbox is a 4 note polyphonic synthesizer for your Eurorack system. Connect your favorite MIDI controller to synthbox and start jamming with built in presets. Use the touchscreen to choose and shape the waveforms and to apply the built in sound effects. Modulate the waves and the effects using a combination of on screen controls of envelopes, low frequency oscillators, and sequencers together with hard wired CV inputs to tweak the sound to meet your creative vision.

Features:

MIDI controllable with support for velocity, pitch bend, and modulation wheel
CV controllable with pitch, gate, and 3 assignable modulators per voice
24 bit DACs and internal processing
8 wavetable oscillators
4 waveform oscillators
2 filters, 2 envelopes, 2 LFOS, and a step sequencer per voice
Global flanger, distortion, and stereo delay effects
Semi-modular control
Stereo or individual voice outputs
Comes with 50 presets and 100 wavetables
Supports user wavetables from WAV file

http://1010music.com/product/synthbox-polyphonic-synthesizer-module


Ø 4.14 (7 Votes) Average Rating
submitted Sep 10th 2017, 02:03 by djtransistor | last Change Sep 22nd 2017, 01:21 by djtransistor

16 Users are observing this
