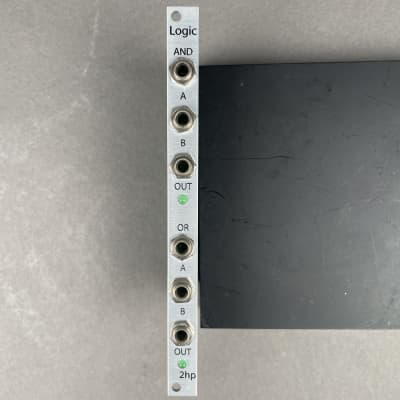

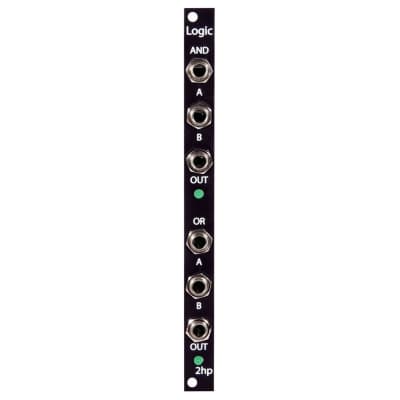

Boolean Gate Operator

Logic is a 2 channel, boolean gate operator. It provides two unique logic operations: AND and OR. The AND Channel is useful for gating existing rhythmic events within a patch.

Conversely, The OR channel is well suited for mixing two timing events down to a single output, creating interesting polyrhythms and syncopations from existing gate signals.

-Channel 1 normals to channel 2 if there is no cable present
-AND logic operations
-OR logic operations

http://www.twohp.com/modules/logic

  • 35 mA +12V
  • 3 mA -12V
  • 0 mA 5V
  • 47 mm deep

This Module is currently available.

$89
2 HP Logic
submitted Dec 9th 2016, 19:03 by twohp | last Change May 29th, 17:36 by twohp
Specs are approved by the manufacturer
