Dimensions
2 HP
22 mm deep
Current Draw
40 mA +12V
3 mA -12V
? mA 5V
Price
$90 Price in €

This Module is currently available.

Specs are approved by the manufacturer

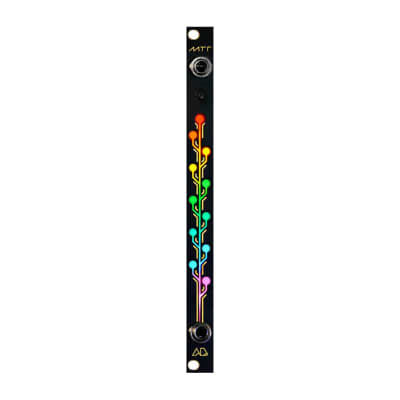

LED Meter

MTR is designed to show signals from 0V to +12V in an aesthetic way.

– Trimmer accessible through the front panel to adjust the voltage range displayed on the meter.

– High impedance input and a buffered output, behaves like a buffered multiple.

– 12 leds total

– Displays voltages from 0v (pink, bottom) to 12v (red, top)

– Can be set to aproximately 1 LED per volt but this is not a precise measuring device, it is more of an eye candy module.

https://abyssdevices.com/product/mtr-2hp-eurorack-led-vu-meter/
