Dimensions
4 HP
45 mm deep
Current Draw
50 mA +12V
50 mA -12V
0 mA 5V
Price
$140 Price in €

This Module is currently available.

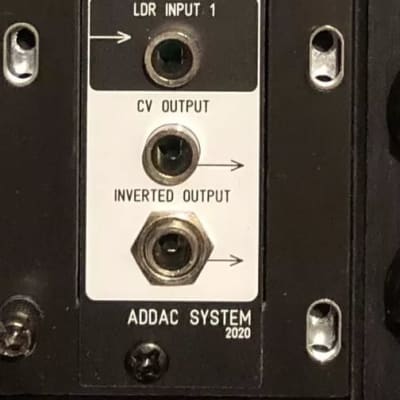

Light to CV

Another addition to our ADDAC 300’s Expressive Controls series

This module converts the incoming light hitting an external light sensor into 2 Bipolar CV Streams:
Output: More light > Higher CV output
Inverted Output: More light > Lower CV output

The external sensor is enclosed in a jack socket in order to be used with any standard jack cable and be able to place it in any place outside the eurorack frame.

There are several controls to adjust the CV Output’s signals:

Sensitivity:
Adjusts the Light Sensor sensitivity to Light
The Higher the sensitivity the better it responds to low light situations

Response:
3 fixed settings (medium/fast/slow) to set the slew applied to the raw signal coming from the sensor.

Gain:
Sets the gain for both outputs

Offset:
Adjusts the Offset for the main Output.

Inverted Offset:
Adjusts the Offset for the Inverted Output.

https://www.addacsystem.com/en/products/modules/addac300-series/addac308


submitted Dec 29th 2020, 16:05 by Flieher | last Change Dec 30th 2020, 00:42 by motorhead412
