Dimensions
4 HP
22 mm deep
Current Draw
17 mA +12V
17 mA -12V
? mA 5V
Price
$119 Price in €

This Module is currently available.

A dual VCA based on the Mutable Instruments Veils

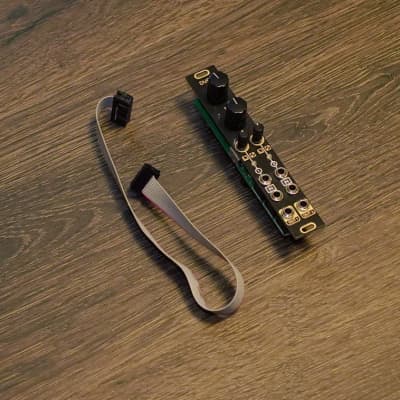

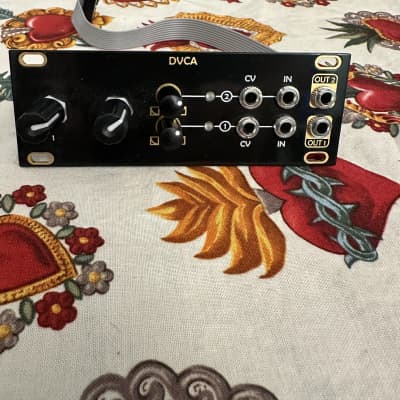

DVCA is a dual VCA based on the Mutable Instruments Veils. It features two separate voltage-controlled amplifiers, both with a gain and a response curve potentiometer, that is variable from linear to exponential. The outputs are normalized, so when no patch cable is present on output 1, output 2 will contain both signals, allowing the module to be used as a mixer. Several DVCAs can be daisy-chained for voltage-controlled mixer operation. It comes with jack lights that can be disabled via a jumper on the back.

These modules use tall bushing potentiometers to offer a more stable feel.

The module is fully assembled and tested. Eurorack power cable included.
