Dimensions
16 HP
25 mm deep
Current Draw
160 mA +12V
35 mA -12V
0 mA 5V
Price
$259 Price in €

This Module is currently available.

A combination of Clouds, Monsoon & Microcell

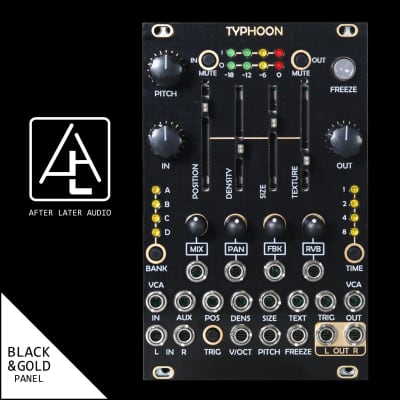

TYPHOON is an expanded version of Mutable Instruments Clouds. It features four sliders instead of knobs and no more switching of blend modes!!! All four blend functions - Dry/Wet, Stereo Panning, Feedback and Reverb are present with dedicated pots & CV inputs.

By default, Typhoon comes with the expanded "SuperParasites" firmware which combines code from Mutable Instruments (original Clouds DSP), Matthias Puech (Parasites), and Julius Kammerl (Beat Repeat) into one powerful DSP library. This firmware was compiled by Patrick Dowling (of the Ornament & Crime team).

Mode 1 [●○○○]: Granular Clouds (Parasites)
Mode 2 [○●○○]: Pitch Shift / Time Stretch (Parasites)
Mode 3 [○○●○]: Looping Delay (Parasites)
Mode 4 [○○○●]: Spectral Processor (Parasites)
Mode 5 [○●●●]: Oliverb (Parasites)
Mode 6 [●○●●]: Resonestor (Parasites)
Mode 7 [●●○●]: Beat Repeat (Kammerl)
Mode 8 [●●●○]: Spectral Clouds (Kammerl)

Size: 16HP Eurorack Format
Frontpanel 2mm FR4 - matte black & gold with white silkprint.
Dedicated blend controls for Feedback, Panning, Mix, and Reverb (similar to Monsoon)
Stereo VCAs on input & Output
Input/output mutes
Exponential and linear pitch controls
Universal CV routing with AUX input
Sifam "Intellijel style" knobs
Yellow "Freeze" LED button
Bi-color LED´s on slider, for positive & negativ incoming CV

OPEN SOURCE HARDWARE Derivative Panel, PCB & Schematic provided by Jakplugg under creative commons CC-BY-SA-3.0 license. Original CAD file, PCB & Schematic and original design elements provided by Mutable Instruments under creative commons CC-BY-SA-3.0 license
