Dimensions
4 HP
32 mm deep
Current Draw
8 mA +12V
8 mA -12V
? mA 5V
Price
$105 Price in €

This Module is currently available.

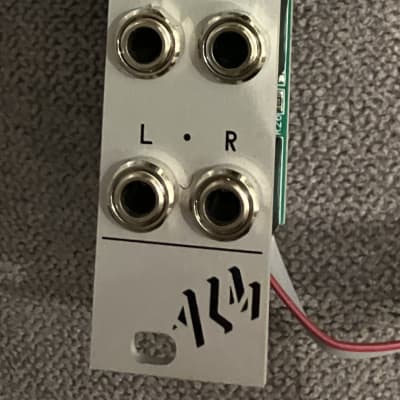

Stereo Summing Mixer

The ‘STEREO SUM’ is a unity gain summing mixer that features four stereo input pairs summed as pairs to two independent mix outs or all as a single combined mix. It is a useful utility for efficiently combining outputs of multiple stereo sources, such as the MEGA-TANG and Jumble Henge mixers or multiple MFX returns.

The inputs accept stereo or mono signals (via normalisation) which can be audio or CV (module is DC coupled) and the top mixer’s outputs are normalised to the bottom mixer section meaning if the upper output is left unpatched the two upper inputs will be added to the lower output.

https://busycircuits.com/alm038/


submitted Jul 7th 2023, 17:03 by ALM | last Change Jul 7th 2023, 19:02 by ALM

7 Users are observing this
