Dimensions
18 HP
40 mm deep
Current Draw
80 mA +12V
10 mA -12V
0 mA 5V
Price
$432 Price in €

This Module is discontinued.

Specs are approved by the manufacturer

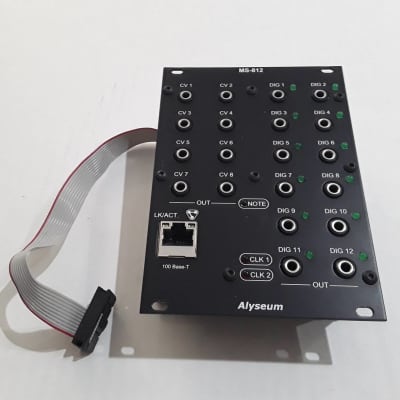

MIDI to CV/Gate convertor

MS-812 are the first Ethernet-based products dedicated to modular synthesizers. They are full MIDI-compliant utility modules and are the most effective solution to interconnect computers and your Eurorack modular system.
The high number of CV and digital outputs gives you a very powerful MIDI-to-CV/Gate interface which can also carry clock outputs or can work as two MIDI-to-Sync24 converter. The module can be controlled by several computers in your network simultaneously.
An octal, 16bit DAC is used for CV.

MODULE AVAILABLE ON REQUEST - 2 WEEKS DELAY

http://www.alyseum.com/ms-812.html
