SELECTOR

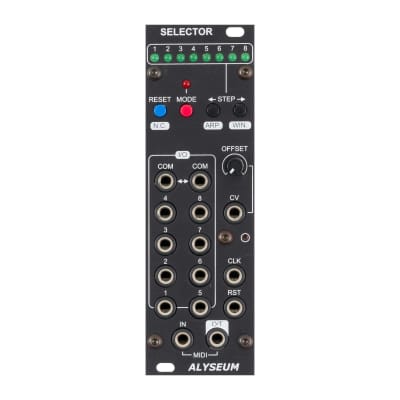

SELECTOR, the most versatile Sequencial Switcher 8 ↔ 1

SELECTOR module is a fully bi-directional Sequential Switcher 8 ↔ 1, also called Demultiplexer 8 → 1 or Multiplexer 1 → 8.
It is a highly versatile module in terms of connectivity, control, extension and use. Its front panel, combined with a multitude of control signals, which sets it apart from other manufacturers.
Up to 8 SELECTOR modules can be chained to create a bigger Selector up to 64 ↔ 1! Only one Switcher is active at a time.

SELECTOR module can be controlled in 8 different Modes:
1. Standalone by push buttons.
2. Slave of the MATRIX modules linked to its Preset & Bank management.
3. CV input with offset adjustment (-5V until 0V).
4. MIDI Note or MIDI CC input.
5. Sequential switcher with MIDI CLK input.
6. Sequential Switcher with CLK input and her programmable steps number.
7. Sequential Switcher with CLK + RST inputs.
8. CV & CLK Inputs, like a S&H NEW ! (Firmware 1.1)

Two features increase the power of the different modes and their usability:
1. An "Arpeggiator-like" function is available for the Modes 5, 6 and 7
and is including 4 patterns.
2. A "Steps Window" function is available for the Modes 3 until 8, and allows you
to freely choose a range of steps in number and location.

The Alyseum HOLD expander module adds the following 2 functions to the SELECTOR
● 8 digital addressed outputs, selectable between Trigger or Gate.
● 1 CV input to 8 analog addressed outputs, selectable between S&H or T&H

Features:
● Solid state Switcher type DG408
○ Excellent voltage tracking between Input & Output
○ Wide signal range: from –10,5 Volts to +10,5 Volts
○ Very low resistance of 40Ω
○ Fully bi-directional
● Simple firmware upgrades by the front panel MIDI port.
● Polarised power header and protection against reverse polarity.
● Delivery with a short MIDI cable (stereo Jack/Jack 3.5mm).
● Eurorack 8 HP wide.

https://www.alyseum.com/selector.html
