Dimensions
4 HP
39 mm deep
Current Draw
Module does not draw current
Price
$79 Price in €

This Module is currently available.

Power Supply

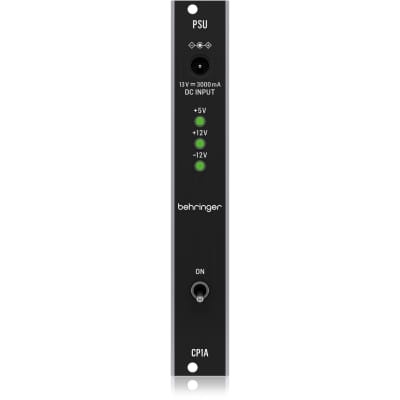

CP1A
• High-performance power supply module for Eurorack
• Ultra-low noise power supply through two flying bus boards
• Eurorack specs: 4 HP, 1,000 mA +12 V, 1000 mA -12 V, 500 mA +5 V
• LED Indicators on each power rail

Power Outputs and Pin Outs:
+5 VDC @ 0.5 A, pins 11, 12
-12 VDC @ 1 A, pins 1, 2
+12 VDC @ 1 A, pins 9, 10
Ground, pins 3, 4, 5, 6, 7, 8
Operating Temperature Range: 5°C – 40°C (41°F – 104°F)

Maximum depth of module that can be inserted: 39 mm (1.54") (Please Note: The maximum module depth only applies when the rack is used on a desktop. When it is rack mounted the maximum depth is determined by the 19" rack unit so the available depth would be much greater)
Module Dimensions: 129 x 20 x 52 mm (5.08 x 0.79 x 2.05") (4HP)
Weight: 0.056 kg (0.124 lbs) (power supply module only)
Product Code: SYSTEM 55 CP1A
