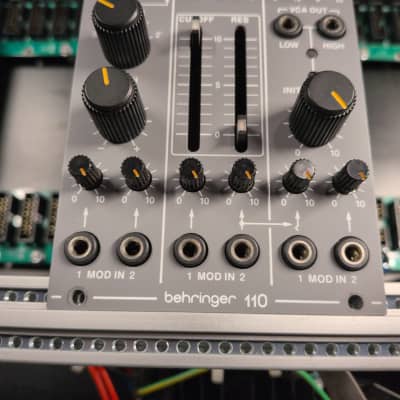

SYSTEM 100 110 VCO/VCF/VCA

VCO features 3 selectable waveforms
(triangle, ramp and PWM)

PWM can be manually controlled or
via external CV input

VCO offers Pitch and Range controls
plus 1 audio output plus 2 CV inputs

VCF features Cutoff Frequency and
Resonance controls plus 2 audio
inputs and 2 CV inputs

VCA features Gain control plus
2 audio inputs, 2 audio outputs
(low/high) and 2 CV inputs

  • ? mA +12V
  • ? mA -12V
  • ? mA 5V

This Module is a prototype or in a concept phase.
