Dimensions
16 HP
46 mm deep
Current Draw
90 mA +12V
70 mA -12V
0 mA 5V
Price
$99 Price in €

This Module is currently available.

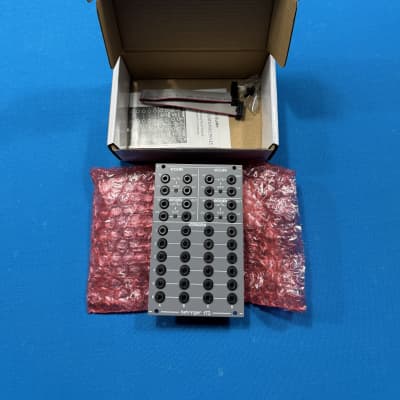

SYSTEM 100 112 DUAL VCO

Each VCO features 3 selectable waveforms (triangle, sawtooth and PWM). Additionally the Sync Out always outputs the PWM signal which can be used as an additional audio out. Sawtooth and PWM are unipolar (0 to 10V) whereas the triangle is bipolar (-5 to 5V).

PWM can be manually controlled manually or via an external CV input.

Each VCO offers Pitch and Range controls plus 2 audio outputs, 3 pitch CV inputs.

VCO’s feature strong and weak sync output modes for accurate phase locking.

(Note there are reports that early versions of this module had issues with temperature compensation which reduced the useful range of the oscillators before needing to re-turn. The newest versions of the modules should not have this issue but it may be wise to ask which revision a seller has before buying)
