8 HP
38 mm deep
Current Draw
78 mA +12V
78 mA -12V
? mA 5V
$329 Price in €

This Module is currently available.

Specs are approved by the manufacturer

ADAT Optical Converter

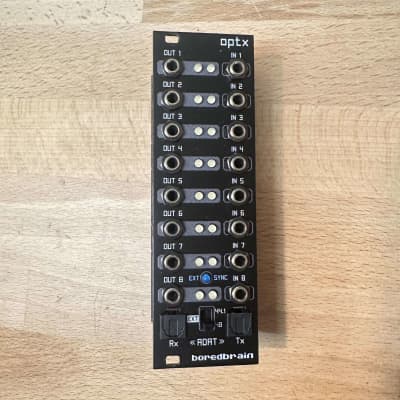

Optx is a compact and bi-directional ADAT lightpipe converter for eurorack synthesizers. The module provides 8 channels of input and output expansion to many pro audio interfaces, and may be used standalone to interconnect eurorack systems.

- Encodes 8 analog inputs into ADAT Lightpipe
- Decodes ADAT Lightpipe into 8 analog outputs
- DC-coupled outputs support both CV and audio signals
- Selectable 44.1/48 kHz internal sample clock or external sync
- Dual LED indication of output signal strength and polarity

ADAT Encoding & Decoding
Some computer audio interfaces are equipped with one or more pairs of ADAT expansion ports allowing for additional input and output channels. Optx takes full advantage of these often unused ports, providing multi-channel connections directly to and from eurorack systems.

The module accepts any 8-channel ADAT encoded digital signal at the Rx TOSLINK jack (via lightpipe optical cable) and converts it into 8 discrete analog signals available at the OUT 1-8 jacks.

Conversely, Optx accepts 8 discrete analog signals at the IN 1-8 jacks and converts them into an 8-channel ADAT encoded digital signal available at the Tx jack.

The module’s analog outputs are DC-coupled, meaning signals can be AC (audio) or DC (control voltages). So when used in conjunction with software such as Bitwig Studio or Ableton CV Tools, Optx becomes an interface for outgoing control voltages like 1V/oct pitch and gate signals, or LFOs, ADSRs and other modulators. The amount of creative potential here cannot be overstated.

Sample Clock Synchronization
The module has three options for sample clock sync, selectable using the 3-way switch.

44.1 Generates and syncs to internal clock of 44.1 kHz
EXT Syncs to external clock from ADAT signal at Rx
48 Generates and syncs to internal clock of 48 kHz

With the switch set to EXT, the blue EXT SYNC LED will illuminate when a valid sample clock is detected at Rx.

Signal LEDs
Optx also provides visual signal indication of the 8 decoded ADAT channels feeding the OUT 1-8 jacks. Each pair of WHITE LEDs indicates the polarity (-Ve left, +Ve right) and relative strength of the signal (± 10 V).

Audio-rate signals will generally light both LEDs continuously, whereas LFOs will alternate more apparently between the two. Gates, triggers and positive-going envelopes will generally light only the right LED (+Ve).
