4-channel stereo mixer

The Unify is a 4-channel stereo mixer with selectable line or module level output and separate headphone output.

The 4 input channels are module level with audio-taper level pots and constant-power pan pots. The output can be either line or module level, so this module can be an output mixer or a utility mixer. The headphone output has a separate level pot. There a clip LED to indicate overloads.

Ample expansion capabilities have been designed into the module, and a series of expansion modules is planned.

The Unify uses high performance LM4562 amplifiers which have excellent noise and distortion specs. One of the best amplifiers available today. The Unify also boasts sealed pots and enclosed jacks. No scratchy controls!

Features:
• Module-level inputs
• Input level control on each channel
• Constant-power pan on each channel
• Separate left and right output jacks
• Output level control
• Front panel button for line/module level
• Overload indication (clip LED)
• Headphone output with separate control

http://circuitabbey.com/Unify.html

  • 50 mA +12V
  • ? mA -12V
  • ? mA 5V
  • 37 mm deep
  • Ø 4.28 (25 Votes) Average Rating

No info about availability.

$250 submitted Oct 11th 2012, 19:23 by solitud | last Change Jan 30th, 19:16 by cmlouie

Date Region Description Price Seller

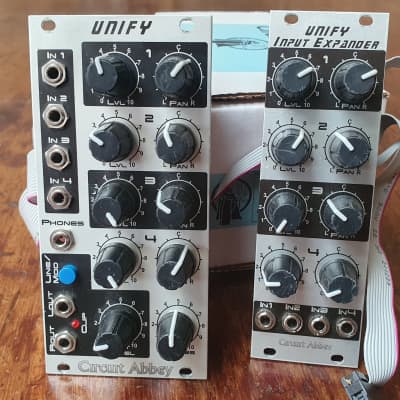

EUThe overall condition of this Circuit Abbey Unify is like new except the usua...€223,00evzone View

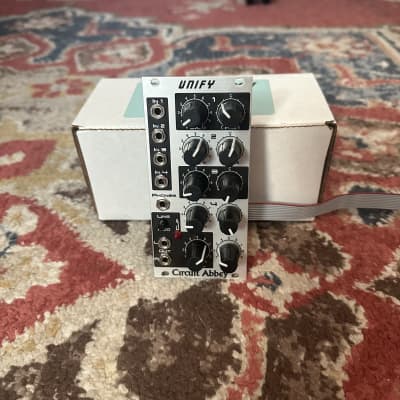

JapanGood condition. Original box. I am the first owner. Used only at home in smok...¥18,000.00Parmesan View
