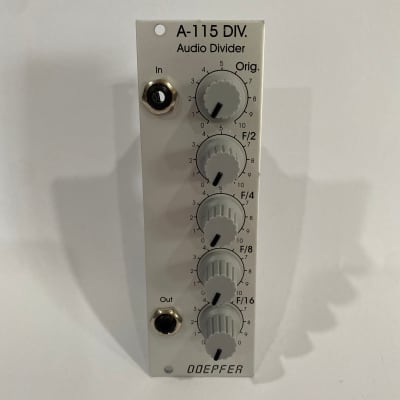

Audio Divider

Module A-115 is a four-way frequency divider. The frequency of a signal at the input is halved (half frequency = first sub-octave), quartered (1/4 frequency = second sub-octave), and so on. In this way, the DIVIDER produces four sub-octaves (F/2 down to F/16).

At the output, the A-115 produces a summed mix of the original and the four sub-octaves. There are attenuators to control the amount (ie. Amplitude) of the original signal and each of the sub-octaves.

Bear in mind that the sub-octaves output by the A-115 are all true square waves. At the output there are always four square waves and the original signal available.

For more detailed information please look at the English user's manual

http://www.doepfer.de/a115.htm

  • 20 mA +12V
  • 20 mA -12V
  • 0 mA 5V
  • 40 mm deep
  • Ø 3.39 (23 Votes) Average Rating

This Module is currently available.

$80 submitted Oct 6th 2012, 13:36 by MacroDX | last Change Sep 29th 2016, 02:02 by acgenerator
