42 HP
35 mm deep
Current Draw
260 mA +12V
120 mA -12V
? mA 5V
$185 Price in €

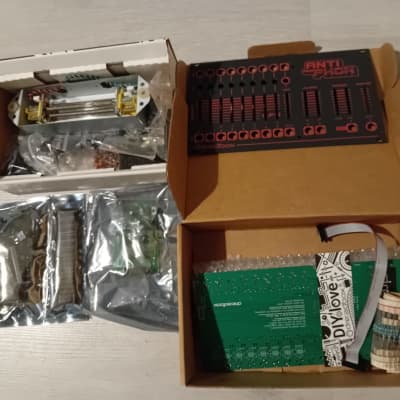

Module is available as a DIY project only.

This Module is currently available.

Analog Monophonic Synth Voice

•Analog Monophonic Synth Voice
•8 Sine Wave Oscillators
•Oscillator 7 and 8 can be used as LFOs with a range of 1min up to 10kHz
•Individual Oscillator Outputs and pitch control
•2-Pole non-resonant Low Pass Filter
•2-Pole non-resonant High Pass Filter
•Exponential VCA
•Analog Spring Reverb with Gain control
•150mm 3-Spring Reverb tank by Belton
•External Input can accept up to Guitar Levels
•In combination with the Cardboard case+ power product (NOT INCLUDED in the DIY KIT), it can be used as a Drone Synth or as a Desktop Effect
Desktop Effect:
– Spring Reverb
– Tremolo
– Ring Modulator / Bit Crush
– Filter Effects
– Overdriven Reverb
•22 Patch Points
•42HP Eurorack Format
•Current Draw:
+12V -> 260mA
-12V -> 120mA
