Bassline Module

The Domino is the eurorack modular version of it's desktop bigger brother. An all-in-one synth voice with saw/square wave oscillator, ladder type low pass filter, envelope and VCA - it is designed for pure beefiness and grunt in the low end department. It excels at basslines, acid, kicks and low throbbing drones

Using the pitch knob, the tuning range is 1 octave, designed to be used primarily in lower ranges. Middle position of the pitch knob is 110khz (A2) after calibration - this can be adjusted at home using the vco_tune trimmer

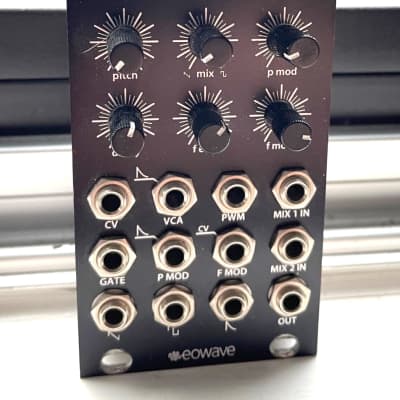

Controls
- Cutoff - filter frequency
- Res - filter resonance
- Switch - switches between gate>VCA to envelope>VCA
- Pitch - pitch tuning
- Mix - blend saw and square waves
- P Mod - pitch modulation attenuator
- Decay - envelope decay
- Filter Envelope - modulation amount, pre-patched from envelope to filter
- F Mod - filter cutoff modulation attenuator

In
- CV
- VCA
- PWM (square wave)
- Mix 1 in - input for external oscillator/sound source to replace saw wave
- Gate - gate in
- P Mod - pitch modulation, pre-patched to envelope
- F Mod - frequency modulation for filter cutoff, pre-patched to CV in
- Mix 2 in - input for external oscillator/sound source to replace square wave

Out
- Saw
- Square
- Env - envelope output
- Out - out from VCA

  • 50 mA +12V
  • 26 mA -12V
  • ? mA 5V
  • 37 mm deep
  • Ø 5.00 (3 Votes) Average Rating

This Module is currently available.

$279 submitted Oct 6th 2016, 10:51 by mr.sibs | last Change Oct 5th 2017, 01:10 by
