41 HP
28 mm deep
Current Draw
170 mA +12V
70 mA -12V
0 mA 5V
$569 Price in €

This Module is currently available.

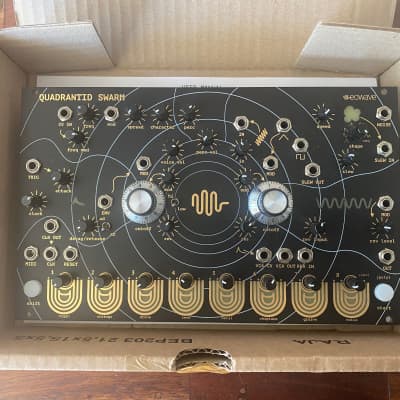

The Quandrantid Swarm is a versatile, unique instrument for sound designers and musicians looking to explore exquisite and unfamiliar timbres that range from subtle to outrageous, nebulous to shimmering. It is comprised of a digital synthesizer voice with a percussive element, 2 pole analog filter, an LFO with 8 waveforms, and a spring reverb. The 8 touch keys can be used as a mono keyboard, polyphonic keyboard or an 8 step sequencer. The QS interfaces with other instruments via MIDI, and CV/Trig inputs. Pre-patching allows you to get hands on immediately, but you can and should use patch cables to to fully explore the potential of this instrument

triangle wave osc with spread fold
perc element with freq
2 pole filter, filter one high/low pass 12db, filter 2 low pass 12db
AD envelope
1 x LFO with 8 waveforms
slew limiter
spring reverb (a separate reverb tank is supplied with the module)

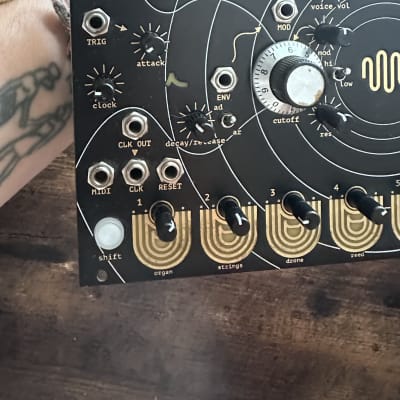

8 touch keys with 3 modes – mono, poly and sequencer
MIDI in, CV/Trig in, Clock in/Reset in to communicate with other devices
