Dimensions
3 HP
35 mm deep
Current Draw
17 mA +12V
13 mA -12V
0 mA 5V
Price
$112 Price in €

This Module is currently available.

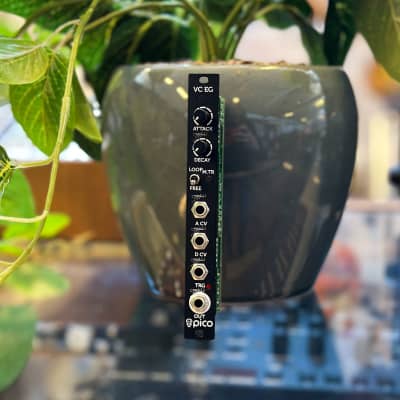

Erica Pico VC EG is versatile looping AD/ASR envelope generator with voltage control over attack and decay times. It has automatic Trigger/Gate detection, as well as “drone mode” – at full CW setting of the Decay knob, the envelope is full open. In the LOOP mode you can re-trigger envelopes for even more interesting modulations.

Features
AD/ASR envelope
Automatic Trigger/Gate detection
Manual and voltage control over
Attack and Decay time
Manual trigger button
Input protection against over-voltage
Protection against reverse PSU connection
Output amplitude 0V - 10V
Attack time 5ms - 1s
Decay time 5ms - 50s
CV level (Full span) -5V - +5V
Power consumption +17MA, -13MA
Module width 3 HP
Module depth 35 mm

https://www.ericasynths.lv/shop/eurorack-modules/by-series/pico-series/pico-vc-eg/
