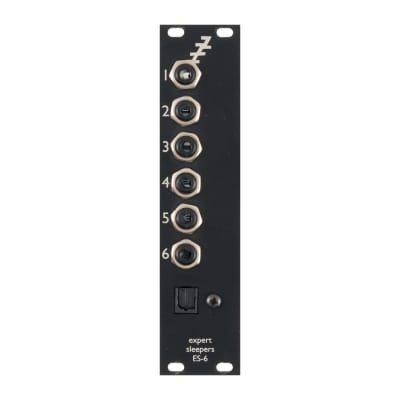

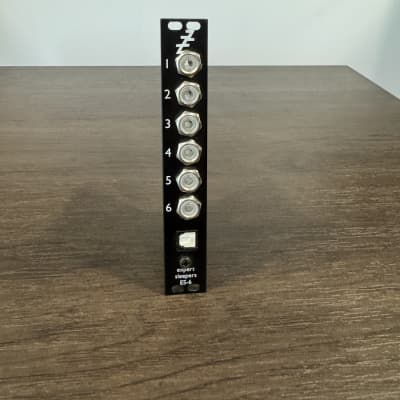

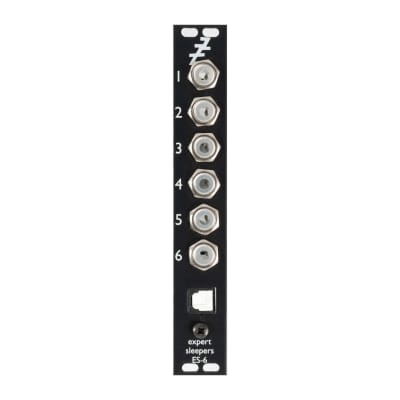

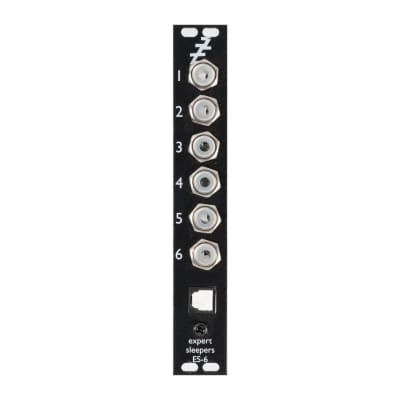

ES-6 CV/Lightpipe Interface

The ES-6 is the counterpart to the ES-3 Lightpipe/CV Interface, offering up to 8 channels of CV input with output via an optical lightpipe connection.

The ES-6 is the counterpart to the ES-3 Lightpipe/CV Interface, offering up to 8 channels of CV input with output via an optical lightpipe connection.
The ES-6 itself has 6 input sockets; the remaining 2 channels are provided by an expansion module e.g. the ES-7.

Please note that a connected ES-3 is required for operation. The ES-6 gets its clock signals from the ES-3, which derives them from its lightpipe input.

http://www.expert-sleepers.co.uk/es6.html

  • 67 mA +12V
  • 24 mA -12V
  • 0 mA 5V
  • 52 mm deep
  • Ø 3.71 (7 Votes) Average Rating

This Module is discontinued.

$175 Price in €
6 HP Utility
